720W power supply unit 12V/60A, for rack mounting
CHF 282.10 excl. VAT, plus shipping costs
Description

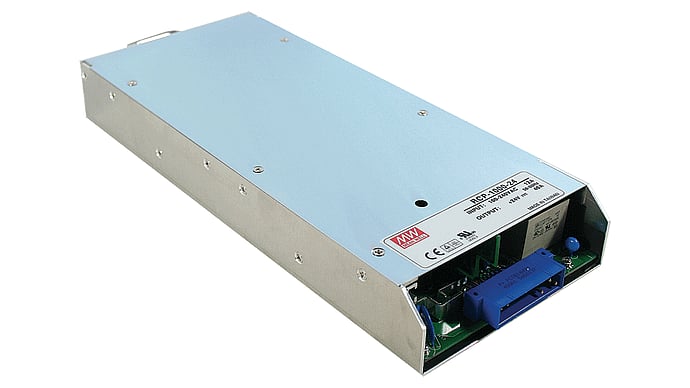

RCP-1000-12 is a 720W front-end power supply unit for rack installation. Installed in the RCP-1UI/T rack, up to 3 RCP-1000-12 units can be operated in parallel per rack. With the built-in hot swap function, redundant operation can also be implemented without any problems.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- For rack mounting in a rack RCP-1U
- Auxiliary circuits 5V/0.3A and 12V/0.8A
- Output voltage programmable
- Hot swap capable
- Active current sharing up to 3000W in 1 rack
- DC OK signal and overtemperature alarm signal (OTP)
- Air cooling with integrated DC fan
- Operating temperature range from -20°C to +60°C
- Dimensions 295 x 127 x 41mm (L x W x H)
Additional information
| Rack systems | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| Data sheet RCP-1000 | PDF(1.29 MB) |
|---|---|
| Data sheet RCP-1U | PDF(401.76 KB) |
| User Manual RCP-1U | PDF(845.78 KB) |
Downloads
| 3D data RCP-1000 | Zip file (649.03 KB) |
|---|
Accessories
-

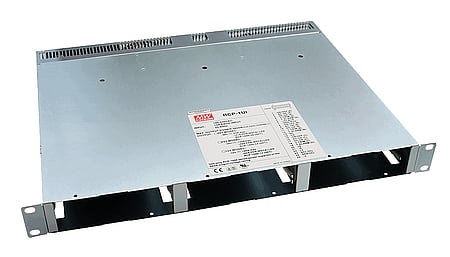

RCP-1UT
19-inch rack shelf for RCP-1000 series with screw terminalsCHF 259.20Available to order -
RCP-1UI
19-inch rack shelf for RCP-1000 series with AC inletCHF 259.20Available to order
Similar products
-
NCP-3200-48CAN
3216W Power supply unit and battery charger 48V/67A, for rack mounting, CAN busCHF 610.10Available to order -
RCB-1600-12
1440W charger for 12V lead-acid and Li Ion batteries, for rack mountingCHF 390.40Available to order -
RCP-1UI
19-inch rack shelf for RCP-1000 series with AC inletCHF 259.20Available to order -
RCP-1000-48
1000W power supply unit 48V/21A, for rack mountingCHF 282.10Available to order -

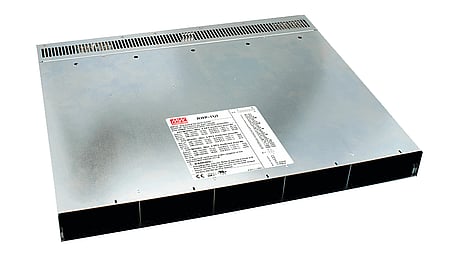

RHP-1UI-A
