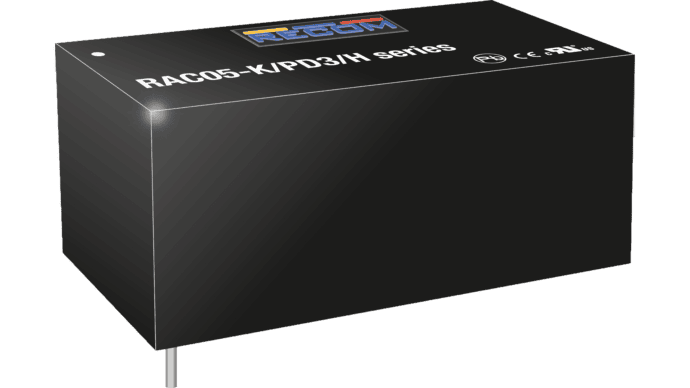

5W AC/DC power supply unit, PCB mounting, 12V/420mA
CHF 15.15 excl. VAT, plus shipping costs
Description
The 5 Watt AC/DC modules of the RAC05-K/PD3/H series are approved according to IEC61010 for PD3 and OVCIII by UL for 100-277VAC rated input lines. The modules support an operating temperature range of -40°C to +85°C in harsh environments with a possible extreme voltage rise up to 400Vac / 480Vac, permanently without damage. Fully protected outputs and EMC Class A and B compliance without external components for floating installations. All these features make it an ideal solution for integration in smart grid, renewable energy, smart metering and IoT applications.
Technical data
- OVC III and PD3 assessment
- Continuous maximum dielectric strength 528VAC
- UL-certified input 90-318VAC
- Operating temperature range: -40°C to +85°C
- Class II installations (without FG)
- EN55032 class "B" with floating outputs
- Power consumption without load <0,5 W
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet RAC05-K_PD3_H | PDF(5.5 MB) |
|---|
Downloads
| 3D Step File RAC05-K_PD3_H | Zip file (88.75 KB) |
|---|
