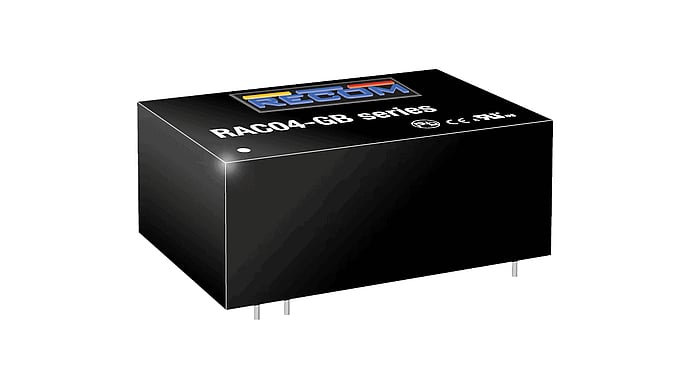

4W AC/DC power supply unit, PCB mounting, 12V/330mA
CHF 10.25 excl. VAT, plus shipping costs
Description
The RAC04-GB series are cost-effective AC/DC power supplies for PCB mounting. They have a universal AC input voltage range, regulated and short-circuit proof isolated DC outputs, low standby power consumption and an operating temperature range of -40°C to +85°C. The RAC04-GB have an integrated Class B / FCC Part 15 EMC filter, are certified to IEC/EN/UL60950-1 and the IEC/EN/UL62368 and EN61558 safety standards and come with a three-year warranty.
Technical data
- Universal input 85-305VAC
- 4W PCB mounting housing
- <75mW power consumption without load
- Ultra-flat profile, compact size
- -40°C to +85°C Operating temperature
- Continuous SCP, OCP, OVP
- IEC/EN/UL60950 and CE certified, EN55032 Class B
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet RAC04-GB | PDF(609.67 KB) |
|---|
Downloads
| 3D Step File RAC04-GB | Zip file (109.79 KB) |
|---|
