PCB mount power supplies

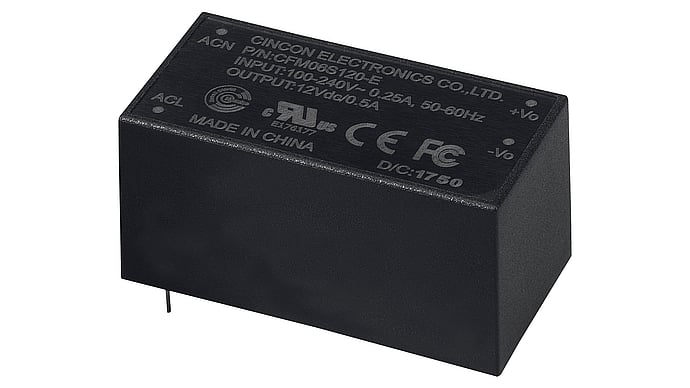

6W AC/DC power supply unit, PCB mounting, 12V/0.5A
CHF 7.40 excl. VAT, plus shipping costs
Item no:
CFM06S120-E
In stock: Available to order
Description
CFM06S family is Cincon's 6Watt Class II AC/DC power supply with high power density and compact dimensions. Version for direct soldering on the PCB.
Technical data
- Input voltage 90 to 264Vac
- No load power consumption 75mW
- Class II
- High efficiency 83%
- Complies with EN55032 Class B and CISPR/FCC Class B
- Complies with IEC62368-1, UL62368-1 and EN62368-1
- Compliance with EN61558 (EN60335)
- Protective circuits: Permanent short circuit and overvoltage
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet CFM06S | PDF(652.77 KB) |
|---|---|
| Application Note CFM06S | PDF(533.01 KB) |
Downloads
| 3D data CFM06S | Zip file (876.59 KB) |
|---|
