PCB mount power supplies

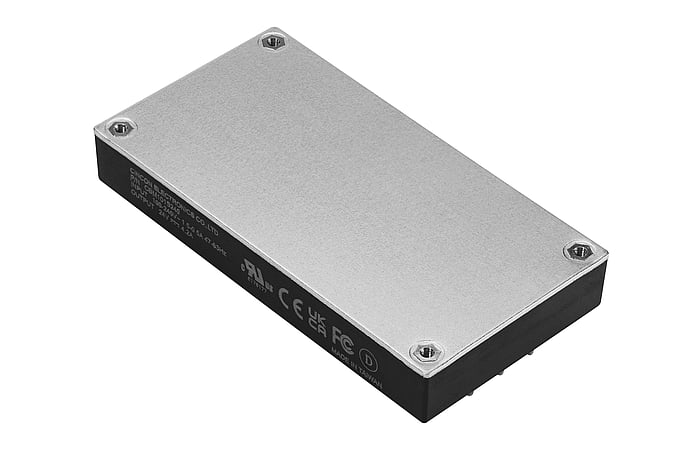

100W AC/DC power supply unit, PCB mounting, 12V/8.4A
CHF 76.10 excl. VAT, plus shipping costs
Item no:
CBM101S120
In stock: Available to order
Description
CBM101S120 series from Cincon is an AC-DC full-brick power supply that delivers 100W regulated power without additional cooling. The series has safety approvals in accordance with IEC/UL/EN 62368-1.
Technical data
- Input voltage 90 to 264Vac / 120 to 370Vdc
- Peak power of up to 120W for 5 seconds
- Power consumption at no load <0.5W
- Very wide operating temperature range from -40°C to +85°C
- 5000m operating altitude
- Full-brick housing with 17mm height
- MTBF >600k hours
- Safety approvals in accordance with IEC/UL/EN 62368-1
- EMC-compliant in accordance with EN55032 Class B and CISPR/FCC Class B
- Output overcurrent, output overvoltage, overtemperature and continuous short-circuit protection.
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| LEDs | ||||||||||||||||||||
|
|
||||||||||||||||||||
| More | ||||||||||||||||||||
|
||||||||||||||||||||
Data sheets
| Specification CBM101S | PDF(376.24 KB) |
|---|---|
| Application note CBM101S | PDF(641.67 KB) |
Downloads
| 3D drawing CBM101S | Zip file (933.87 KB) |
|---|
