230W CF Rated Medical Open Frame Power Supply 15V/15.3A
CHF 183.40 excl. VAT, plus shipping costs
Description

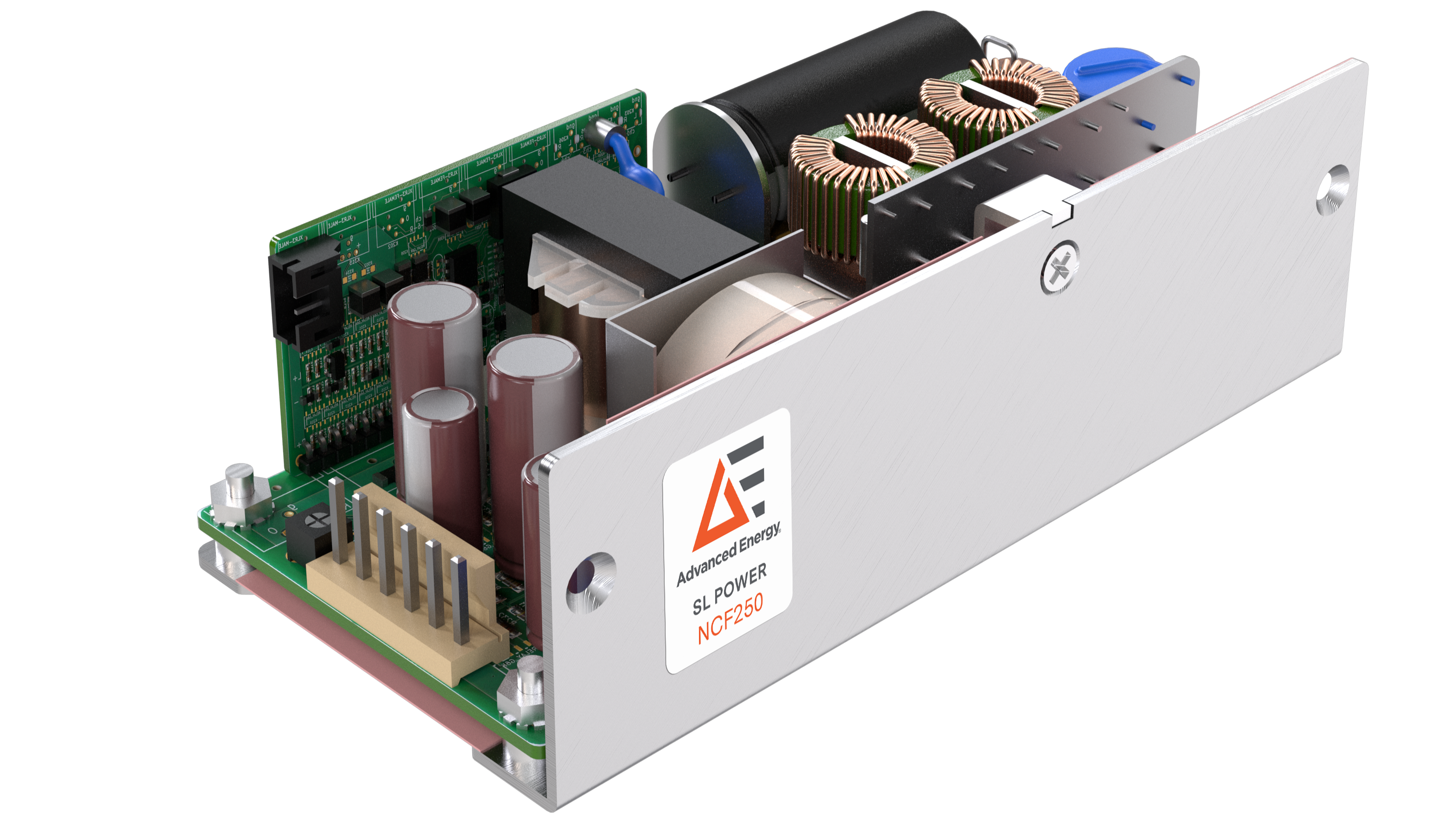

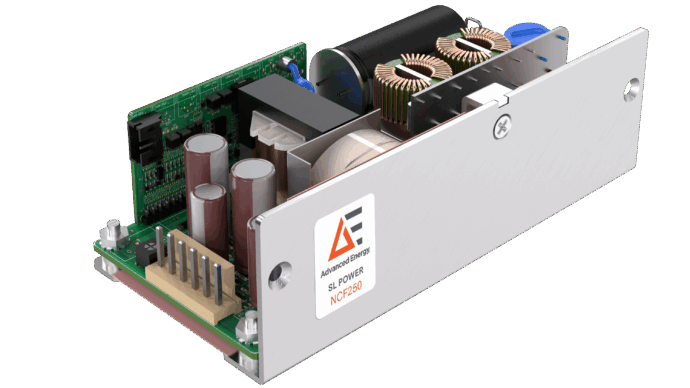

The NCF250 series from Advanced Energy (SL Power) are medically approved AC/DC power supplies with CF classification for applications with the highest requirements for isolation and leakage current in patient-proximal systems.
As one of the few standard products on the market, the NCF series meets CF (cardiac floating) requirements and has an extremely low leakage current. A defibrillator resistance of 5 kV ensures safe use in critical medical environments.
Technical data
- Patient leakage current: < 10uA @264Vac, NC / < 50uA SFC
- Patient leakage current: < 250uA @ 264 V AC, NC
- Conducted and radiated emissions according to class B
- 5 kV defibrillator pulse strength
- 2x MOPP (4500 V AC) Input/output insulation
- 1x MOPP (1500 V AC) input-ground and output-ground insulation
- 5 V standby output, DC OK signals, inhibit function
- Output power 250W (with fan), 175W (convection)
- Dimensions 61 mm x 127 mm x 40.6 mm
- Working temperature range -40 °C to +70 °C
- 5 V standby output @ 0.5 A - 12 V fan output @ 0.4 A
- High efficiency: 90% typical
- ± 10% Adjustment range of the output voltage
- Safety certified according to IEC, UL, EN 60601-1
- EMC complies with IEC/EN 61000 4th edition
Additional information
| Open Frame | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet NCF250 | PDF(745.88 KB) |
|---|
Downloads
| 3D Step File NCF250 | Zip file (442.58 KB) |
|---|
