150W CF Rated medical open frame power supply 48V/3.13A

Name: NCF150S48K - SL Power - 150W CF Rated medical open frame power supply 48V/3.13A
Brand: SL Power
SKU: NCF150S48K
Price: 59.20 CHF
Availability: InStock

CHF 59.20 excl. VAT, plus shipping costs

Item no: NCF150S48K

In stock: Available to order

Recommend:

Delivery time request Print PDF

Description

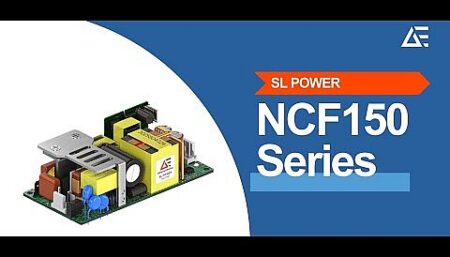

NCF150 is a 150W medical power supply for patient contact. As one of the few standard products on the market, the NCF series fulfills the CF requirements (Cardiac Floating) and has an extremely low leakage current.

Technical data

Patient leakage current: < 10uA @264Vac, NC / < 50uA SFC
Patient leakage current: < 250uA @ 264 V AC, NC
Conducted and radiated emissions according to class B
5 kV defibrillator pulse strength
2x MOPP (4500 V AC) Input/output insulation
1x MOPP (1500 V AC) input-ground and output-ground insulation
5 V standby output, DC OK signals, inhibit function
Output power 150 W (with fan), 120 W (convection)
Dimensions 2.0 "x 4.0 "x 1.26"
Working temperature range -40 °C to +70 °C
5 V standby output @ 0.5 A - 12 V fan output @ 0.4 A
High efficiency: 90% typical
± 10% Adjustment range of the output voltage
Safety certified according to IEC, UL, EN 60601-1
EMC complies with IEC/EN 61000 4th edition

Additional information

Open Frame

Output voltage (Vdc)	48
Power (W)	150
Application	Medical
Standard size	2×4 inch
Protection class	Class I
Length (mm)	101.6
Width (mm)	50.8
Height (mm)	32
Further functions	CF Rated
Manufacturer	SL Power

LEDs

Convection power (W)	120
Efficiency typ.	90%
Manufacturer's warranty	3 years

Data sheets

Data sheet NCF150	PDF(362.05 KB)

Downloads

3D Step File NCF150	Zip file (7.25 MB)
