130W medical open frame power supply 19V/6.8A
CHF 65.50 excl. VAT, plus shipping costs
Description

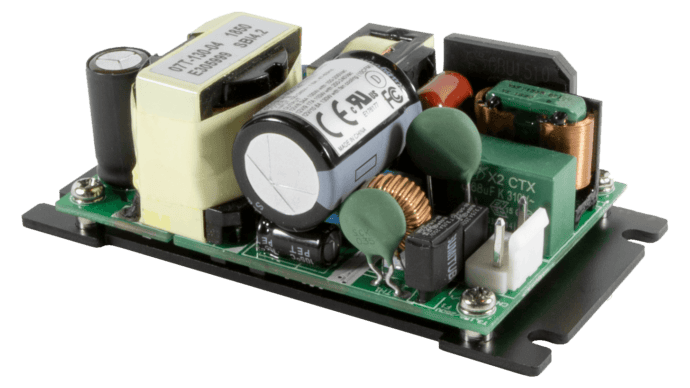

Cincon's CFM130M190-B is a 2 MOPP, high power density, open frame AC/DC medical power supply that is both Class I and Class II compatible and provides 130W of power in a 2×3 inch (50.8×76.2×30.5 mm) footprint. It has safety approvals according to UL60601-1/IEC60601-1/EN60601-1 Ed.3.1 and complies with IEC/EN60335-1. The "-B" version can be thermally connected to the device housing via the base plate to improve derating at high temperatures.
Technical data
- Input voltage range 80 to 264Vac
- Active PFC
- No load power consumption 150mW
- High efficiency 94%
- 100 watts with natural convection
- 130 watts with fan
- Protective circuit: Permanent short circuit
- Complies with IEC60601-1, EN60601-1 and ES60601-1, 2 MOPP
- Complies with IEC/EN60335-1
- EMI safety complies with Class Ⅰ and Class Ⅱ
- Application range 5000m
Additional information
| Open Frame | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| Data sheet CFM130M190-B | PDF(1.08 MB) |
|---|---|
| Application note CFM130M | PDF(1.55 MB) |
Downloads
| 3D data CFM130S | Zip file (12.02 MB) |
|---|
Accessories
-
JST-VH-PLUG-SET-MW
Connector set JST VH seriesCHF 5.0088 Available immediately -
CHA4012BH-W20D
12Vdc fan 40x40x20mmCHF 5.403 Available immediately
