LED constant voltage

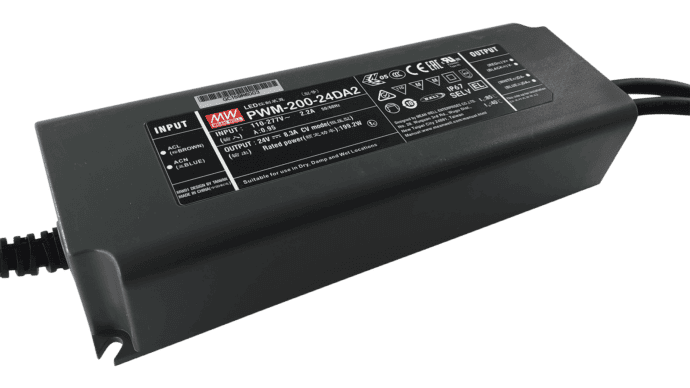

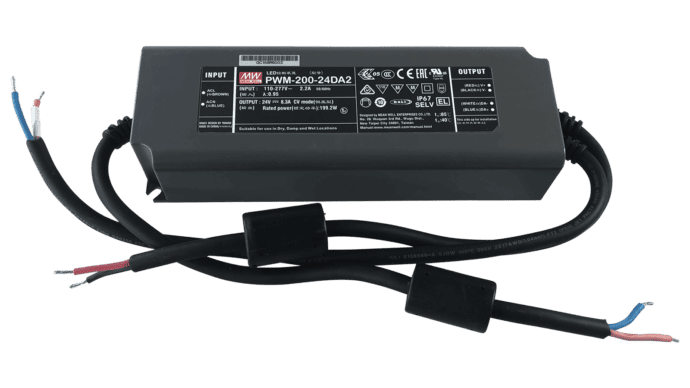

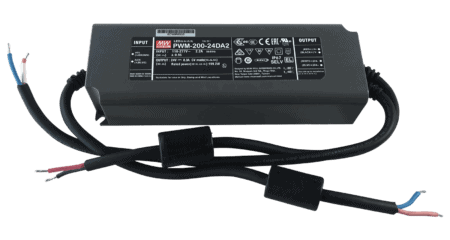

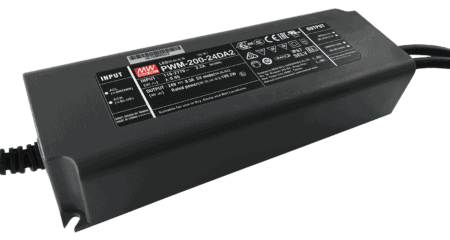

200W LED power supply unit with PWM output 24V/8.3A, DALI2, AC Push
CHF 101.40 excl. VAT, plus shipping costs
Item no:
PWM-200-24DA2
Stock level:98 Available immediately
Packaging ex works:
12 piece
Description
The PWM-200 with PWM output is ideal for operating constant voltage LED applications such as LED strips. The drivers can be dimmed using DALI or AC push buttons.
Control
- DALI
- AC Push
Dimming range
The load-independent dimming range is 0.2% to 100% of the connected load.
Technical data
- Stand-by consumption 0.5W
- Built-in DALI 2.0 interface
- Dimmable with AC Push
- Dimming range 0.2 to 100%
- EL approval for emergency power systems
- Output voltage with PWM dimming frequency of 2.5kHz
- IP67 design for short-term submersion
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -40°C to +70°C
- Dimensions 195 x 68 x 39.5mm (L x W x H)
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
Data sheets
| Data sheet PWM-200 series | PDF(695.33 KB) |
|---|---|
| AC Push operating instructions PWM-200-xxDA2 | PDF(148.09 KB) |
| Protection LED power supplies | PDF(29.09 KB) |
| Installation instructions Mean Well LED driver | PDF(1.2 MB) |
Downloads
| 3D Step File PWM-200 | Zip file (415.38 KB) |
|---|
