LED constant voltage
120W LED driver CV+CC 15V/8A
CHF 68.00 excl. VAT, plus shipping costs
Item no:
NPF-120-15
Stock: Available to order
Packaging ex works:
15 piece
Description

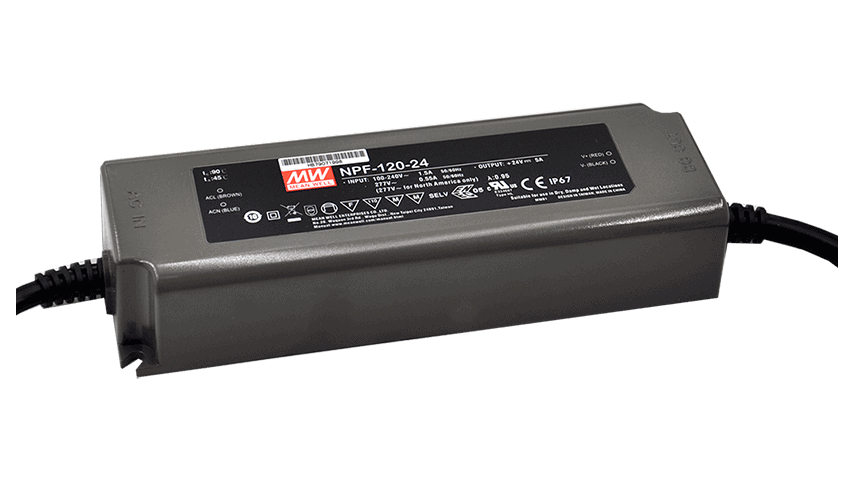

NPF-120 is a 120W LED converter in a plastic housing with IP67 protection class for indoor and outdoor applications without direct sunlight.
Technical data
- Can be used as a constant voltage and constant current source
- No load power consumption <0.15W
- IP67 design, protected against short-term submersion
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -40°C to +70°C
- Dimensions 191 x 63 x 37.5mm (L x W x H)
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet NPF-120 series | PDF(692.04 KB) |
|---|---|
| Test Report NPF-120-15 | PDF(357.67 KB) |
| Installation instructions Mean Well LED driver | PDF(1.2 MB) |
Downloads
| 3D data NPF-120 | Zip file (331.64 KB) |
|---|
