LED constant voltage
96W LED driver CV+CC 54V/1.78A
CHF 57.70 excl. VAT, plus shipping costs
Item no:
ELG-100-54-3Y
Stock: Available to order
Packaging ex works:
16 piece
Description

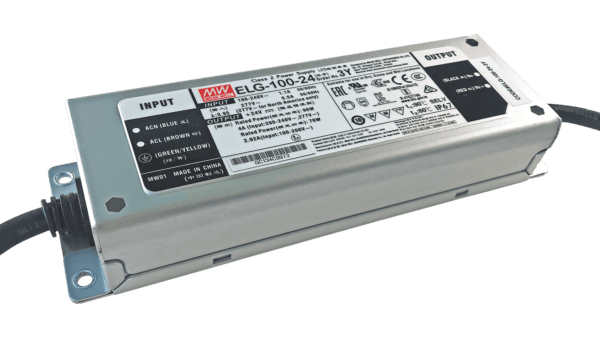

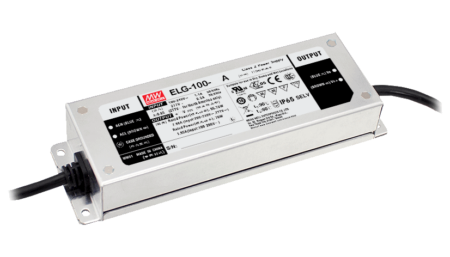

MEAN WELL The ELG-100-54-3Y is an LED driver for use as a constant voltage or constant current source. A version with ground connection via cable, without dimming function.
The "blank" versions of the ELG LED converters have no adjustment options on the device and fulfill the IP67 protection class.
Technical data
- Can be used as a constant voltage and constant current source
- No load power consumption <0.5W
- Service life >50,000 hours
- IP67 design, protected against short-term submersion
- Fully encapsulated in a metal housing
- Operating temperature range from -40°C to +70°C
- Dimensions 199 x 63 x 35.5mm (L x W x H)
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet ELG-100 | PDF(1.02 MB) |
|---|---|
| Test Report ELG-100-54 | PDF(325.1 KB) |
| Installation instructions Mean Well LED driver | PDF(1.2 MB) |
| Carbon Footprint declaration ELG-100-V | PDF(74.04 KB) |
Downloads
| 3D data ELG-100 series | Zip file (310.09 KB) |
|---|
