LED constant current
100W LED driver 875mA...2780mA/27V...56V
CHF 54.00 excl. VAT, plus shipping costs
Item no:
XBG-100-A
In stock: Available to order
Packaging ex works:
16 piece
Description

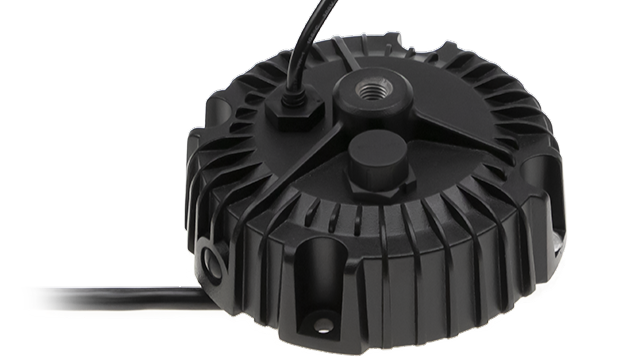

The XBG-100 LED driver with 100W constant power output is designed for the operation of LED lighting applications with constant current. Thanks to the IP67 protection, the power supply unit can be used in both indoor and outdoor applications.
Technical data
- Output current adjustable with built-in potentiometer
- Extended operating range due to constant power design
- Output voltage range: 27 to 56Vdc
- Setting range for output current on the power supply unit: 875 to 2780mA (default setting 2100mA)
- Full power from 1750 to 2780mA
- Metal housing with IP67
- ø 130mm x 56mm(DxH)
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet XBG-100 | PDF(2.19 MB) |
|---|---|
| Test Report XBG-100 | PDF(872.54 KB) |
Downloads
| 3D data XBG-100 | Zip file (2.9 MB) |
|---|
