LED constant current

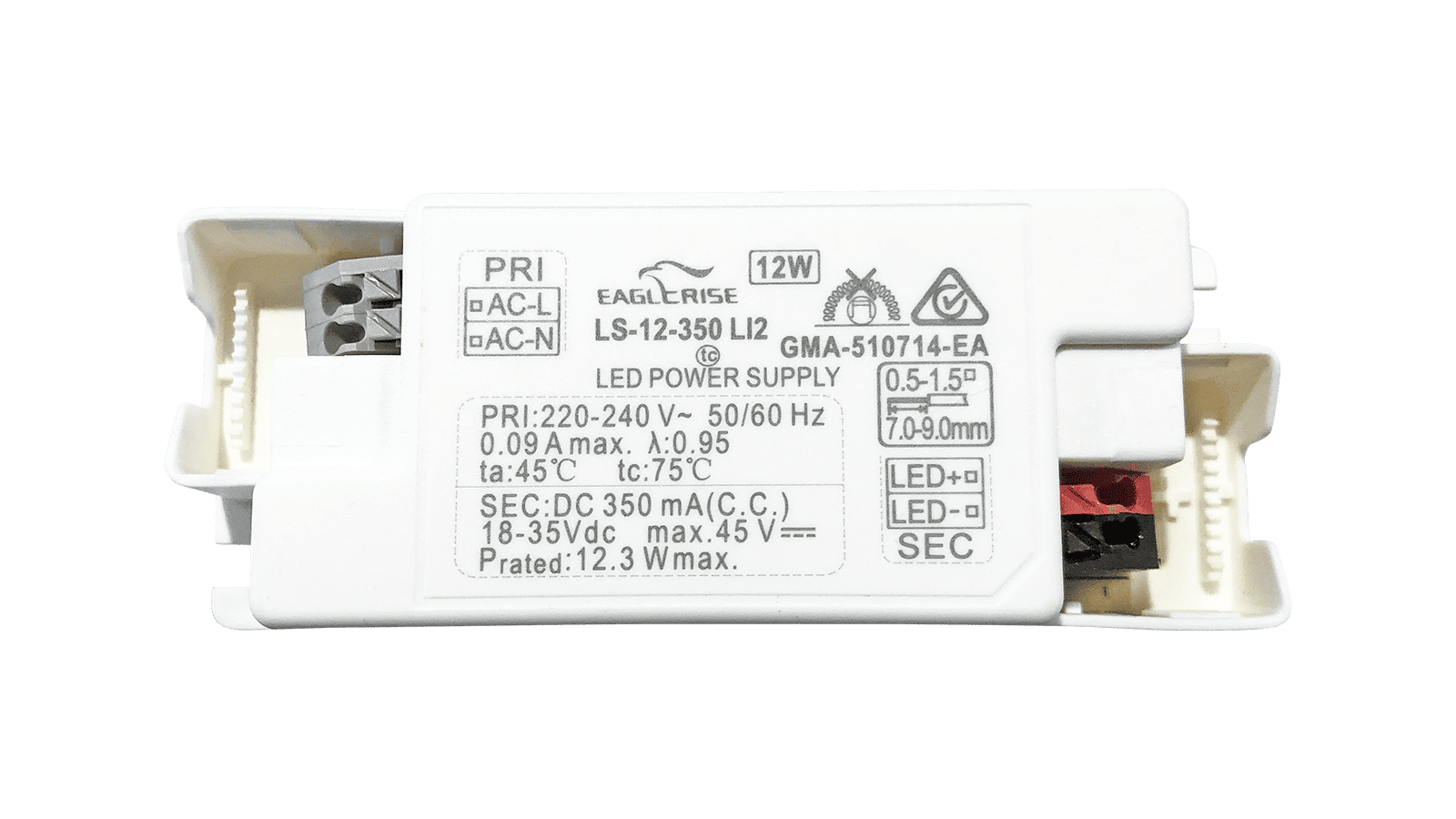

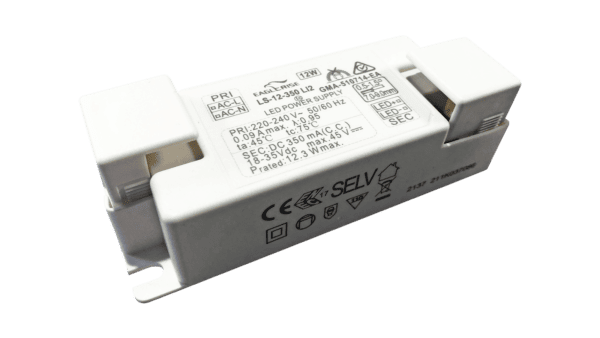

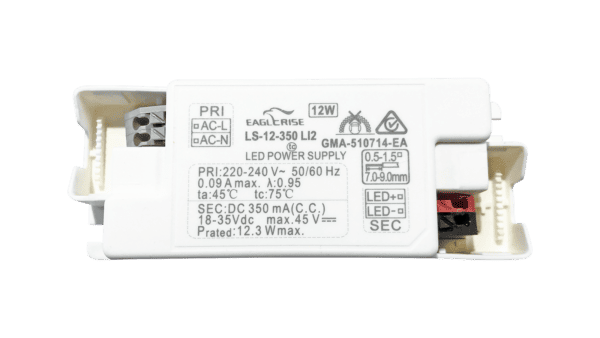

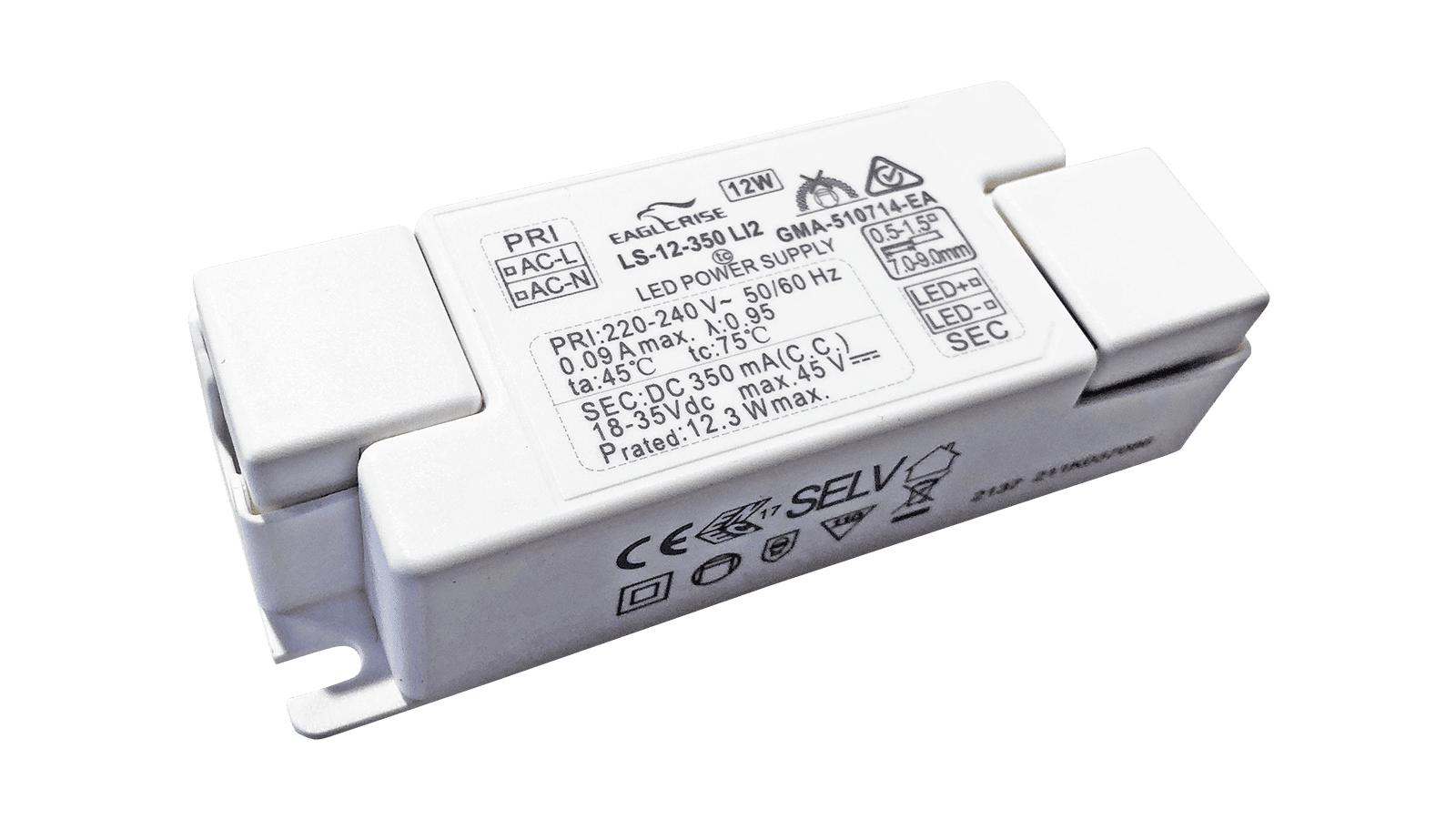

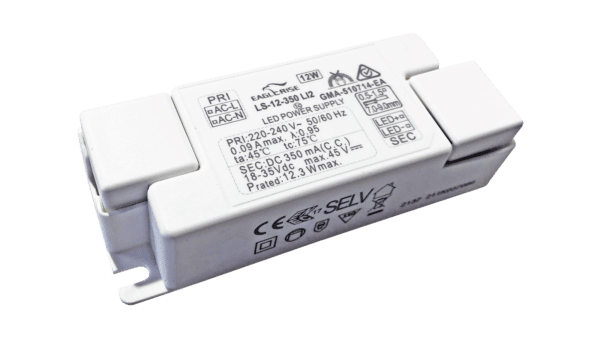

12W LED driver constant current 350mA, 18-35Vdc
CHF 9.60 excl. VAT, plus shipping costs
Item no:
LS-12-350 LI2
Stock:378 Available immediately
Packaging ex works:
144 piece
Description
The LS-12-350 LI2 LED driver with constant current output is designed for the operation of LED lighting applications with 350mA in the voltage range from 18 to 35Vdc.
Technical data
- Input voltage 176 to 264Vac
- Service life >30,000 hours at full load and 45°C ambient temperature
- Operating temperature range from -20°C to +45°C
- Dimensions 100 x 38 x 25mm (L x W x H)
- 5 year guarantee
- Manufacturer: Eaglerise
Additional information
| LED constant current | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet LS-12-350 LI2 | PDF(1.3 MB) |
|---|---|
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D STep File LS-12-350 LI2 | Zip file (173.03 KB) |
|---|
Similar products
-

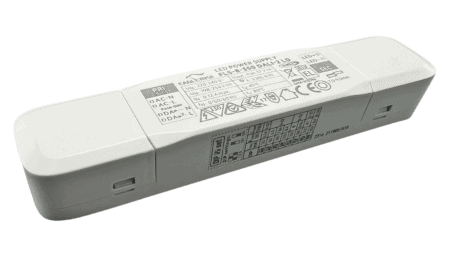

FLS-8-350 DALI2 LD
8W LED driver constant current 120-350mA, 5-42Vdc, DALI2, AC PushCHF 15.00333 Available immediately -

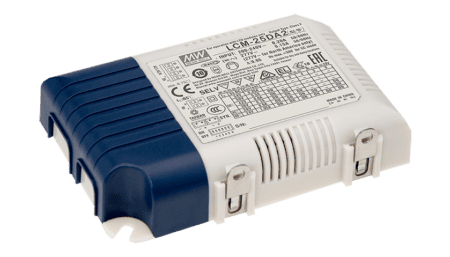

LCM-25DA2
