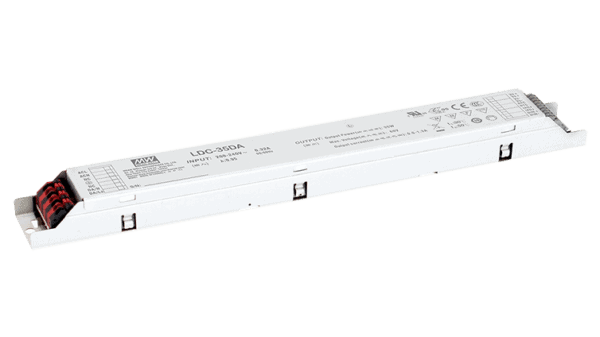

35W LED driver CP 300...1000mA/27V...56V, DALI, AC Push
Instead of CHF 41.70CHF 31.70 excl. VAT, plus shipping costs
Description
The LED driver LDC-35DA with constant power output is designed for the operation of LED lighting applications with 300mA to 1000mA in the voltage range from 27 to 56Vdc. Thanks to the constant power topology, the full 35W are available in the current range from 625mA to 1000mA. Version with DALI and push dimming.
Resistance values for current setting
| Electricity | Resistance value | Article |
| 300mA | Open | - |
| 350mA | 300kOhm | MBA02040C3003FCT00 |
| 400mA | 150kOhm | MBB02070C1503FCT00 |
| 450mA | 100kOhm | MBA02040C1003FCT00 |
| 500mA | 68kOhm | MBA02040C6802FCT00 |
| 600mA | 47kOhm | MBA02040C4702FCT00 |
| 700mA (ex works) | 33kOhm | MBA02040C3302FCT00 |
| 800mA | 24kOhm | MBA02040C2402FCT00 |
| 950mA | 18kOhm | MBA02040C1802FCT00 |
Technical data
- Output current 300 to 1000mA. Adjustable with fixed resistor
- Voltage range 27 to 56Vdc
- DALI and push dimming integrated
- Full power from 625mA to 1000mA
- SELV and isolated
- Dimensions 280 x 30 x 21mm (L x W x H)
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet LDC-35 series | PDF(198.63 KB) |
|---|---|
| Test Report LDC-35 | PDF(492.44 KB) |
| Installation instructions Mean Well LED driver | PDF(1.2 MB) |
Downloads
| 3D data LDC-35 | Zip file (93.71 KB) |
|---|
Accessories
-
MBA02040C3003FCT00
Current setting resistor LDC-35, 350mA602 Available immediately -

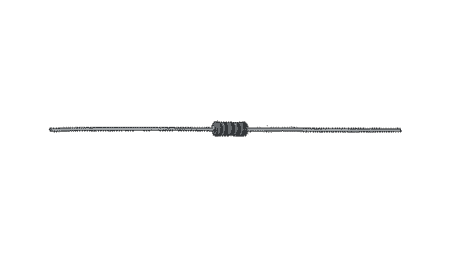

MBB02070C1503FCT00
Current setting resistor LDC-35, 400mA / LDC-55, 700mA / LDC-80, 950mA448 Available immediately -
MBA02040C1003FCT00
Current setting resistor LDC-35, 450mA / LDC-80, 1050mA233 Available immediately -

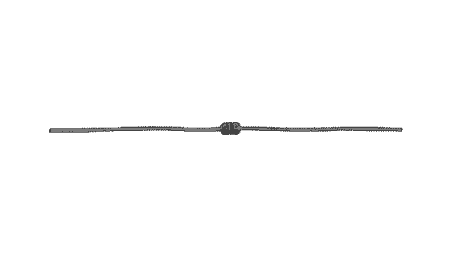

MBA02040C6802FCT00
Current setting resistor LDC-35, 500mA / LDC-55, 900mA / LDC-80, 1200mA167 Available immediately -
MBA02040C4702FCT00
Current setting resistor LDC-35, 600mA / LDC-55, 1050mA / LDC-80, 1400mA258 Available immediately -
MBA02040C3302FCT00
Current setting resistor LDC-35, 700mA / LDC-55, 1200mA / LDC-80, 1600mA180 Available immediately -
MBA02040C2402FCT00
Current setting resistor LDC-35, 800mA / LDC-55, 1450mA / LDC-80, 1900mA239 Available immediately -
MBA02040C1802FCT00
Current setting resistor LDC-35, 950mA / LDC-55, 1600mA / LDC-80, 2100mA580 Available immediately
Similar products
-

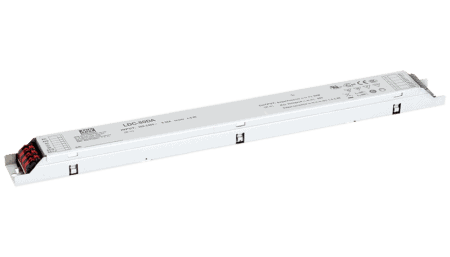

LDC-80DA
80W LED driver CP 700...2100mA/27V...56V, DALI, AC PushCHF 59.4020 Available immediately -
LDC-55DA2
55W LED driver 500...1600mA/27V...56V, DALI 2.0, AC PushCHF 56.0024 Available immediately -

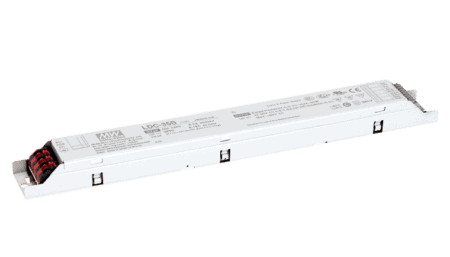

LDC-35B
35W LED driver CP 300...1000mA/27V...56V, 3in1 dimmingCHF 45.003 Available immediately -
FMS-35-700 DALI2 LD
35W LED driver constant current 150 to 700mA, 15-51Vdc, DALI2, AC PushCHF 35.20499 Available immediately -

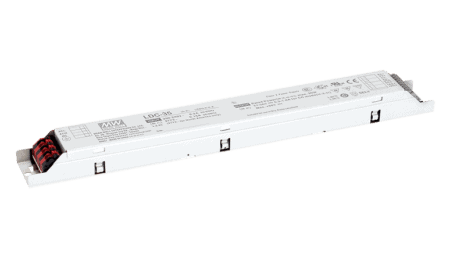

LDC-35
