40W LED driver CC 500-1050mA, DALI2, DT8, DT6 for single color and Tunable White applications
CHF 57.70 excl. VAT, plus shipping costs
Description

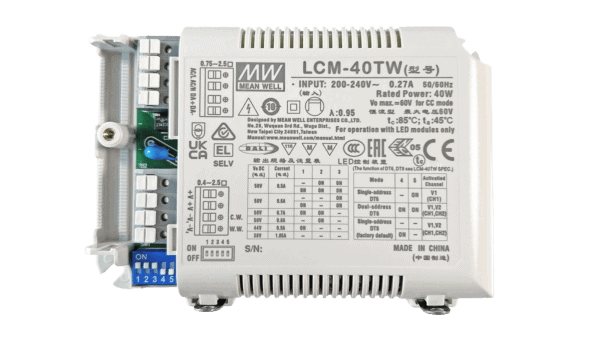

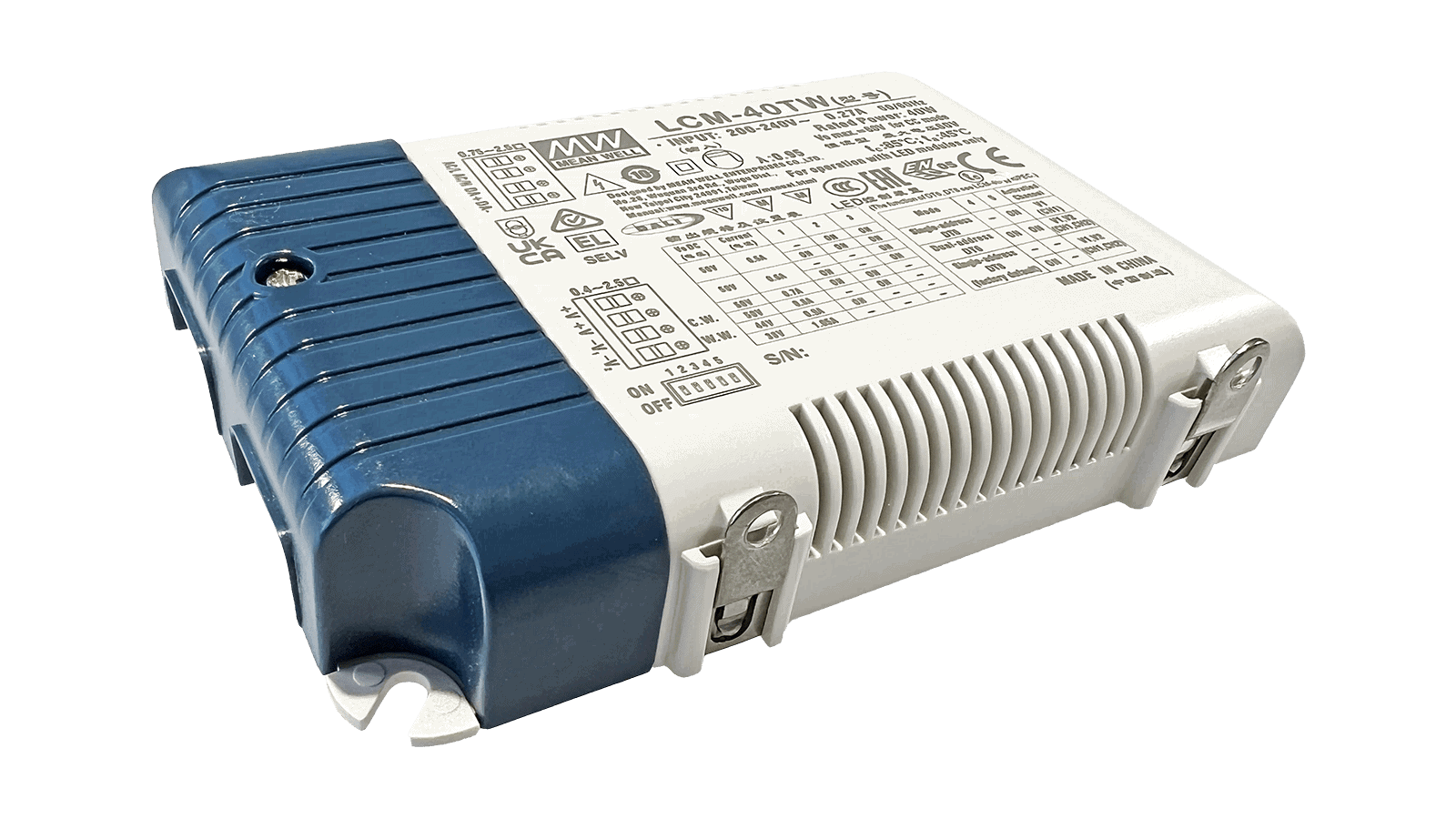

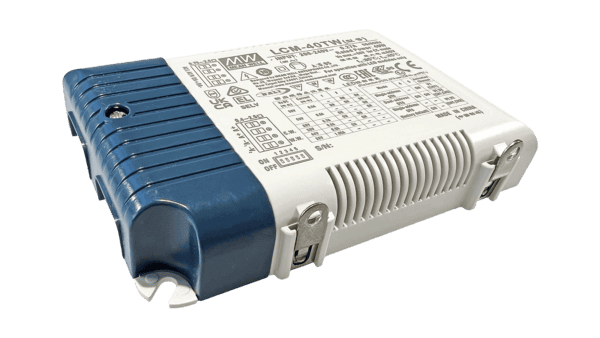

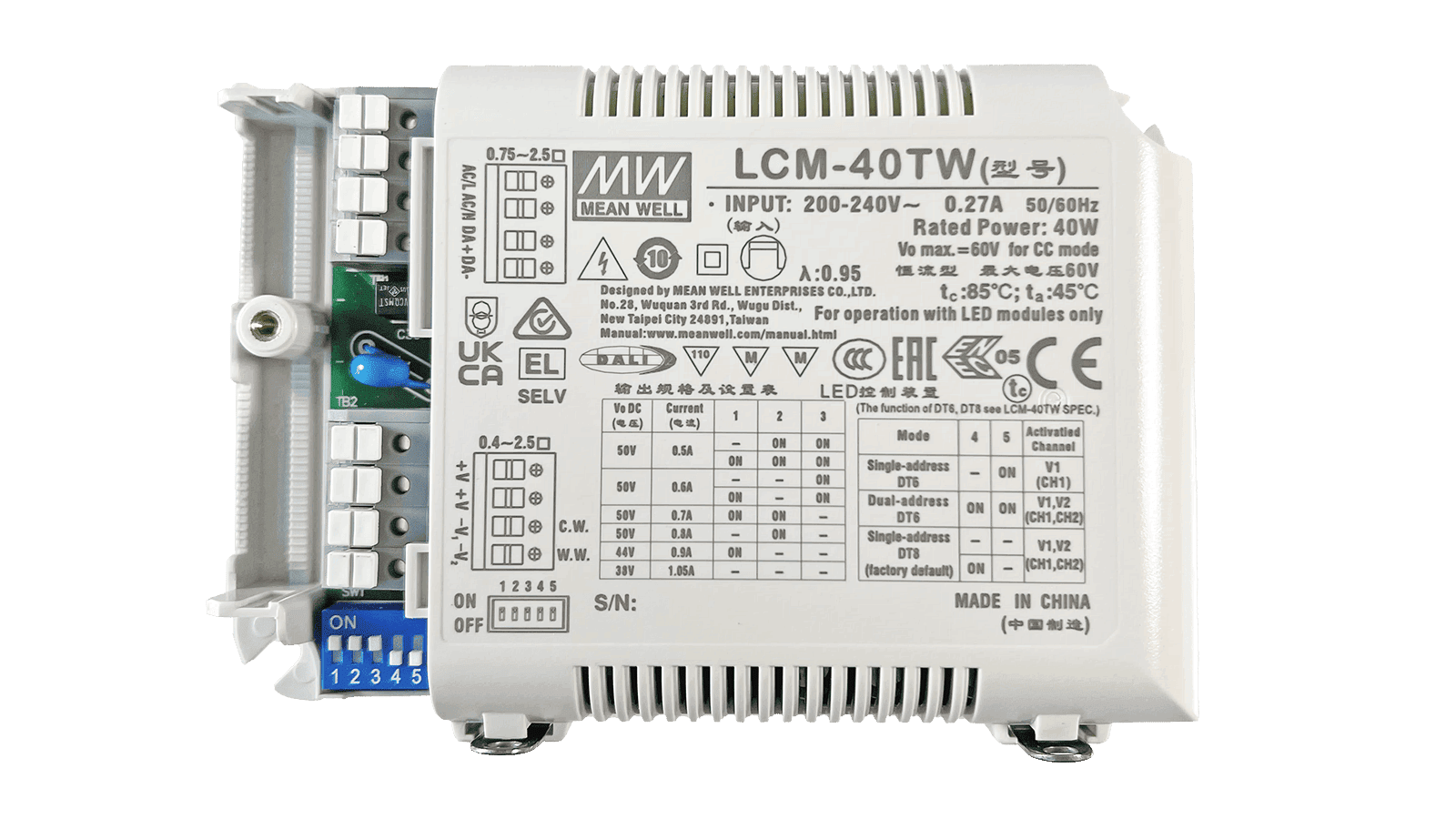

LCM-40TW is a flexible, dimmable LED converter with constant current output for Tunable White or single color applications. The power supply unit can be controlled with DALI2 or AC Push.
Highlights
- The output current can be selected with the DIP switch on the power supply unit
- DALI DT6 and DT8 in one device
- Controllable with DALI2 and AC Push
- Dim-to-warm function integrated via AC Push
- Dimming is flicker-free with current control, no PWM at the output
Control
- DALI2 DT6
- DALI2 DT8
- AC Push

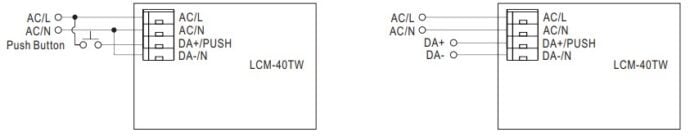

| Application | Addresses | Connection diagram |
| Two independent channels (DT6) | One or two DALI addresses. With one address, only CH1 is active |  |
| DALI color control (DT8) | One DALI DT8 address for color control |  |
AC Push guide
| DIP setting | Output | AC Push function |
| DT6 single address | CH1 | Short click: ON/OFF Double click: 100% Long click: brighter / darker - Stop at max. / min. level - Release and press again to change darker / brighter |
| DT6 Dual address | CH1 (C), CH2 (W) | Short click: ON / OFF Double click: 100% Long click: brighter and colder, darker and warmer - Stop at max. / min. level - Release and press again to change darker / brighter |
| DT8 | CH1 (C), CH2 (W) | Short click: ON / OFF Double click: Switch between brightness and color temperature Long click: brighter / darker or warmer / colder - Stop at max. / min. level - Release and press again to change darker / brighter or warmer / colder |
Dimming range
The dimming range is 0.2% to 100% of the output current.
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet LCM-40TW | PDF(876.07 KB) |
|---|---|
| LCM-40TW manual | PDF(172.85 KB) |
| Installation instructions Mean Well LED driver | PDF(1.2 MB) |
| Protection LED power supplies | PDF(29.09 KB) |
| Test Report LCM-40TW | PDF(519.5 KB) |
Downloads
| 3D data LCM-40 | Zip file (542.21 KB) |
|---|
