DIN rail power supplies

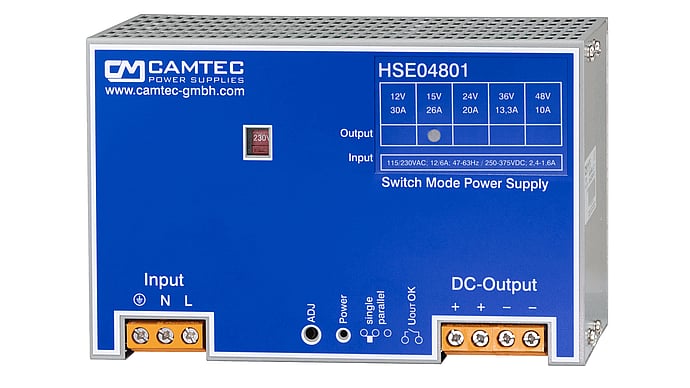

480W DIN rail power supply 48V/10A, single phase
CHF 346.90 excl. VAT, plus shipping costs
Item no:
HSE04801.048
In stock: Available to order
5+ CHF 346.90 CHF 308.10 (11%save)
10+ CHF 308.10 CHF 305.10 (12%save)
Description
The Camtec HSE models are industrial high-performance power supply units "Made in Germany". These highly reliable power supply units are designed for complex loads and battery charging.
Technical data
- Suitable for mounting on TS-35 top-hat rails
- Spring terminals 0.5 to 12mm²
- Efficiency 91
- Open-circuit-proof and permanently short-circuit, overvoltage and undervoltage-proof
- Operating temperature range from -20° to +60°C at full load
- Classic V/I characteristic curve for complex loads such as DC motors
- Serial and parallel switchable
- Dimensions 130 x 200 x 118mm (H x W x D)
- Highly reliable, shock and vibration resistant
Additional information
| DIN rail power supplies | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet HSE04801 | PDF(458.26 KB) |
|---|
Downloads
| 3D data HSE04801 | Zip file (1.12 MB) |
|---|
Accessories
-
DRDN20-48
20A redundancy module for 48V systemsCHF 20.602 Available immediately -
DIN rail perforated TS35/7.5
DIN rail perforated TS35/7.5CHF 1.90 - CHF 2.50Select version This product has several variants. The options can be selected on the product page -
FF12A230UN
Filterfan 230 Vac size 12: 150 x 150 mm B flow intakeCHF 55.7038 Available immediately
Similar products
-
RACPRO1-T480/48
480W 3-phase DIN rail power supply 48V/10ACHF 167.652 Available immediately
