Desktop power supplies

160medical desktop power supply 6.67

CHF 47.60 excl. VAT, plus shipping costs

Item no: GSM160A24-R7B
In stock: Available to order
Packaging ex works: 20 piece
5+ CHF 47.60 CHF 45.30 (4%save)
10+ CHF 45.30 CHF 43.30 (9%save)
20+ CHF 43.30 CHF 42.00 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

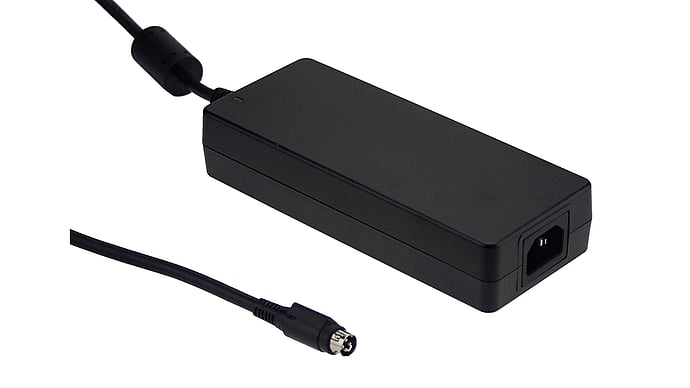

GSM160A24-R7B is a desktop power supply with medical approval. Protection class I version with protective earth.

Technical data

  • Input voltage 80 to 264Vac with PFC
  • Mains connection IEC320-C14 plug
  • DC output Power DIN 4-pin
  • Medical approval 2xMOPP level for patient contact
  • Complies with the home healthcare standard ES60601-1-11
  • Leakage current <100μA
  • Energy efficiency level VI
  • No load power consumption <0.15W
  • Protection class I Device with earth connection
  • Operating temperature range from -30°C to +70°C
  • Dimensions 175 x 75 x 32mm (L x W x H)
  • 3-year guarantee
  • Manufacturer MEAN WELL

Additional information

Desktop power supplies
Output voltage (Vdc)

24

Power (W)

160

Application

Medical

Efficiency Level

VI

DC plug

Power DIN 4P

Protection class

Class I

Further functions

AC protective earth connected to secondary side DC-
LEDs
Manufacturer

MEAN WELL

Data sheets

Data sheet GSM160A PDF(972.17 KB)
Test Report GSM160A24 PDF(197.34 KB)
Installation Manual MEAN WELL Adapter PDF(1.19 MB)

Downloads

3D data GSM160A Zip file (382.34 KB)
