Chargeurs

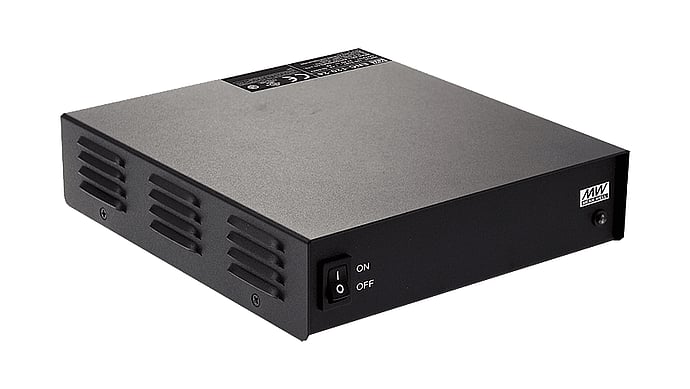

170W charger for 24V lead-acid and LI-ION batteries
CHF 63.20 excl. VAT, plus shipping costs
Item no:
ENC-180-24
In stock: Available to order
Packaging ex works:
10 piece
Estimated delivery time:
1 to 2 weeks
5+ CHF 63.20 CHF 60.20 (4%save)
10+ CHF 60.20 CHF 57.50 (9%save)
20+ CHF 57.50 CHF 55.80 (11%save)
Description
ENC-180 is a 170W battery charger with 3-stage charging characteristics. The charging curve for lead batteries, gel batteries and AGM batteries can be set using a DIP switch. For use with Li-ion batteries, the charging curve can be set to the battery pack used using simple software. The SBP-001 programming interface is required for this.
Technical data
- Charger for lead-acid batteries (switchable for gel and AGM batteries) and Li-ion batteries
- Input voltage switchable 90 to 264Vac
- Programmable three-stage charging characteristic (SBP-001 required)
- Reverse polarity protected
- Temperature compensation function
- Fanless design, convection cooled
- Operating temperature range from -30°C to +70°C
- Dimensions 192 x 178 x 45.5mm (L x W x H)
Additional information
| Chargeurs | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
||||||||||
Data sheets
| Data sheet ENC-180 | PDF(240.89 KB) |
|---|---|
| ENC User Manual | PDF(216.86 KB) |
| Carbon Footprint declaration ENC-180 | PDF(74.23 KB) |
Downloads
| Smart Battery Charging Program Software V1.5 | Zip file (56.33 MB) |
|---|---|
| 3D Step File ENC-180 | Zip file (266.82 KB) |
