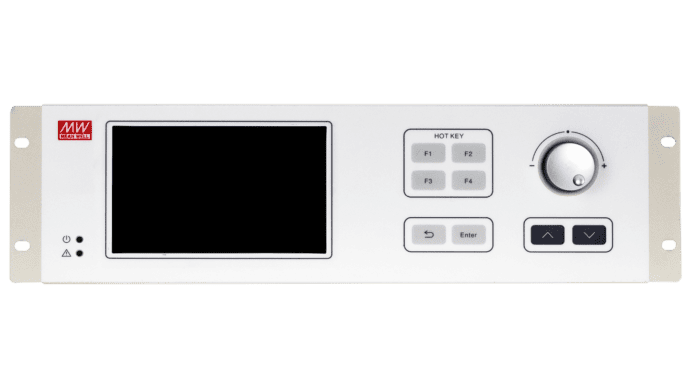

Smart Controller for MEAN WELL Inverter, rack-mounted version
CHF 494.30 excl. VAT, plus shipping costs
Description
CMU2E-R is a fully digitalized intelligent control unit that enables the monitoring and control of MEAN WELL Inverters. CMU2 features a 7-inch LCD touch panel for intuitive operation and can be controlled via a web interface. CMU2 is not only used to monitor inverter operating parameters and data, such as AC bypass, output current, charging current, battery status, internal temperature, fan speed, serial number, and firmware version, but can also be used to control inverter parameters. Furthermore, it can remotely control individual inverters or the entire power system via LAN or the Internet.
Version for rack installation
Technical data
- Control unit for NTN-5K inverters
- 7″ Touch panel
- Version for installation in 19″ rack
- Incl. 4 relays for conventional remote monitoring
- Ethernet connection for remote monitoring and control via web interface
- Dimensions 483.6×66.3x132mm
Additional information
| Mains cable and accessories | ||
|---|---|---|
|
||
| LEDs | ||
|
||
Data sheets
| Data sheet CMU2 | PDF(1.6 MB) |
|---|---|
| User Manual CMU2E | PDF(2.68 MB) |
| Carbon Footprint declaration CMU2C-R | PDF(74.75 KB) |
Accessories
-
NTN-5K-2380
5kW DC/AC UPS inverter with charging and UPS function 280...430Vdc/230VacCHF 1'651.50Available to order -
NTN-5K-248
5kW DC/AC UPS inverter with charging and UPS function 40...66Vdc/230VacCHF 1'651.50Available to order -
NTN-5K-224
5kW DC/AC UPS inverter with charging and UPS function 20...33Vdc/230VacCHF 1'591.10Available to order
Similar products
-
CMU2E-###
Smart Controller for MEAN WELL Inverter, standalone versionCHF 417.80Available to order
