3200W True Sine Wave DC/AC UPS inverter 40...66Vdc/230Vac
CHF 839.10 excl. VAT, plus shipping costs
Description
NTU-3200 is a highly reliable, off-grid DC-AC inverter with 3200 W sine wave power and built-in UPS function (AC bypass).
In combination with a battery and a charger, a UPS can easily be set up. The inverter switches through the mains voltage and automatically reverts to the battery voltage in the event of a mains failure.
Its key features include: digital design with MCU control, optimized control circuitry that responds quickly to environmental changes and improves reliability, high quality fan with low noise level, 4800 watts peak power, adjustable AC output voltage and frequency, full protection functions.
NTU-3200 is suitable for use in residential, commercial, marine, automotive, mining, construction sites and remote areas without access to power supply. The output can be used to power fans, TV, radio, cell phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tools, communication equipment, power distribution cabinets, camping equipment, marine AC, laboratory equipment, etc.
Technical data
- True Sine Wave output (THD 3%)
- Shock power up to 6400W
- 230Vac output with screw terminal
- Cooling through built-in fan
- Output voltage and frequency adjustable with DIP switch, 200Vac, 220Vac, 230Vac, 240Vac, 50Hz / 60Hz
- Integrated remote on/off function
- AC bypass function for setting up a UPS system
- RS232 interface
- Suitable for lead and lithium batteries
- Status display via LED
- On/off switch
- Protective coating
- Protection functions: Alarm and automatic switch-off at low input voltage / overvoltage / overtemperature / short-circuit monitoring output / input reverse polarity protection / overload
- Dimensions 420 x 270 x 98mm (L x W x H)
- 3-year guarantee
Additional information
| Inverter | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
Data sheets
| Data sheet NTU-3200 | PDF(4.37 MB) |
|---|---|
| Test Report NTU-3200 | PDF(229.16 KB) |
| User Manual NTS/NTU | PDF(1.27 MB) |
Accessories
-
IRC1
Remote control for True Sine Wave InverterCHF 23.00Not in stock -
IRC2
Remote control for True Sine Wave InverterCHF 26.70Not in stock -
IRC3
Remote control for True Sine Wave Solar InverterCHF 30.40Not in stock -
NPB-750-48
750W charger 55.2V/11.3ACHF 181.80Not in stock -
NPB-1200-48
1200W charger 55.2V/18ACHF 255.301 Available immediately -
CARRY HANDLE
HandleCHF 5.60Not in stock
Similar products
-
NTU-2200-248TB
2200W True Sine Wave DC/AC UPS inverter 40...66Vdc/230VacCHF 741.60Not in stock -

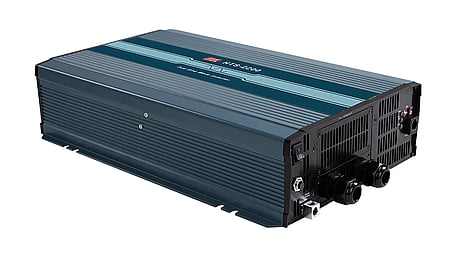

NTS-2200-248TB
