Inverter (DC/AC)
250W DC/AC inverter 24Vdc/230Vac with true sine wave voltage
CHF 84.20 excl. VAT, plus shipping costs
Item no:
NTS-250P-224
Stock level:16 Available immediately
Packaging ex works:
18 piece
5+ CHF 84.20 CHF 80.00 (4%save)
10+ CHF 80.00 CHF 76.60 (9%save)
20+ CHF 76.60 CHF 74.50 (11%save)
Description

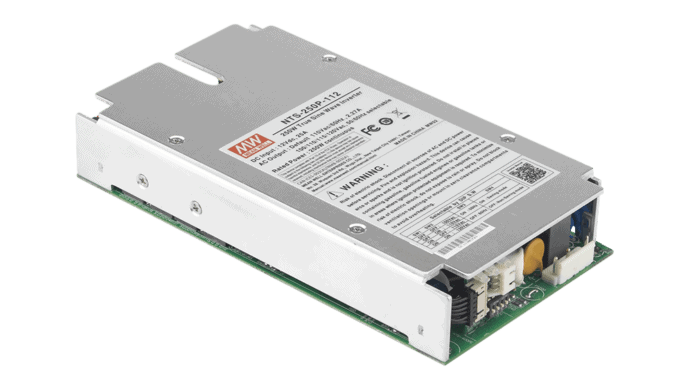

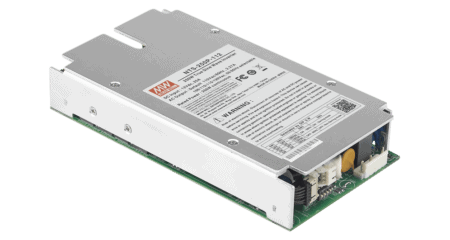

The NTS-250P DC/AC inverter reliably converts the battery voltage into a genuine 230Vac sine wave. As a built-in version, this inverter has particularly compact dimensions. Further highlights of this inverter series are the standard protective coating and the digital monitoring and control function via UART Tx / Rx signals.
Technical data
- True Sine Wave output (THD 3%)
- Shock power up to 500W
- Fanless design (convection cooled)
- Integrated remote on/off function
- Supports Tx / Rx for monitoring and control
- Status display via LED
- On/off switch
- Protective coating
- Protection functions: Alarm and automatic switch-off at low input voltage / overvoltage / overtemperature / short-circuit monitoring output / input reverse polarity protection / overload
- Dimensions 186 x 100.5 x 32mm (L x W x H)
- 3-year guarantee
Additional information
| Inverter | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
Data sheets
| Data sheet NTS-250P | PDF(1.29 MB) |
|---|---|
| Test Report NTS-250P-224 | PDF(230.7 KB) |
| User Manual NTS/NTU-Series | PDF(1.29 MB) |
Downloads
| 3D data NTS-250P | Zip file (812.14 KB) |
|---|
