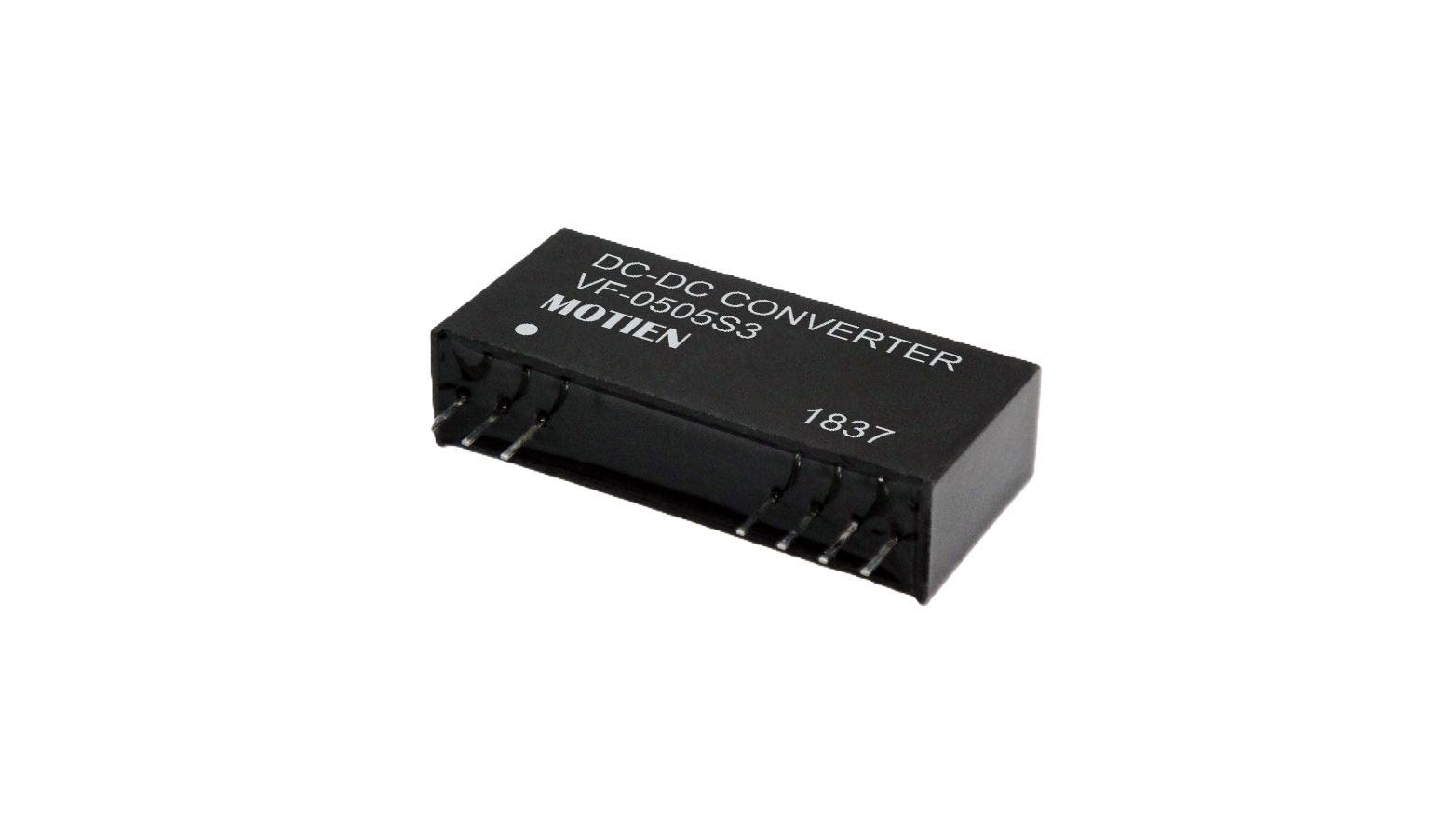

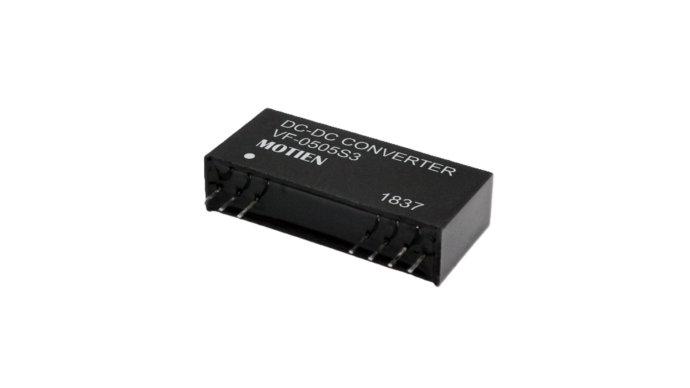

3W DC/DC converter, input 24V, output 24V/125mA
CHF 4.10 excl. VAT, plus shipping costs
Description
The VF-3W series is a family of cost-effective 3 Watt single output DC-DC converters. These converters combine miniature housing in a 12-pin SIL compliant package with high performance features such as 1000 ~ 5200 VDC input/output isolation voltage, continuous short circuit protection with automatic restart and high line/load regulation. The devices are encapsulated with flame retardant resin. Input voltages of 5, 12, 24 with output voltages of 3.3, 5, 7.2, 9, 12, 15, 18, 24 VDC. Performance features include a high efficiency of up to 73 % and a maximum output voltage accuracy of ±2 %. Standard features include an input range with a tolerance of ±10%, low output noise and low ripple.
Technical data
- SIP12 Package
- 1000Vdc insulation
- Permanently short-circuit proof
- Efficiency 73
- Operating temperature range -25°C to +99°C
- Black plastic housing non-conductive
- 3-year guarantee
- Manufacturer Motien
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet VF-3W | PDF(905.51 KB) |
|---|
