DC/DC PCB assembly

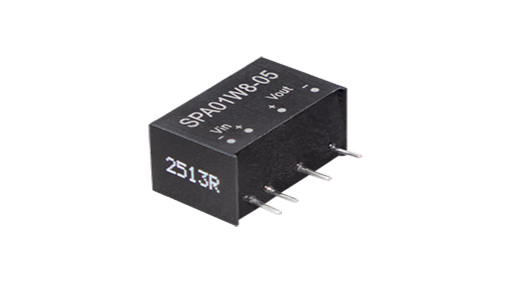

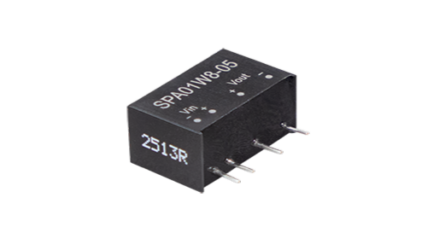

SPA01W8 + DPA01W8, 1W DC-DC converter with 8:1 input, SIP6
CHF 7.40 excl. VAT, plus shipping costs
Item no:
n. a.
Stock: n. a.
Packaging ex works:
28 piece
Description
SPA01W8 Series
Regulated DC-DC converter single output with 1W output power and ultra wide input voltage range from 9 to 75Vdc.
DPA01W8 Series
Regulated DC-DC converter dual output with 1W output power and ultra wide input voltage range from 9 to 75Vdc.
Technical data
- SIP6 housing with standard industrial pinout
- 8:1 Input voltage range from 9 to 75Vdc
- No minimum load required
- Complies with EN55023 Class A without additional components
- High efficiency of up to 80%
- 3-year manufacturer's warranty
Additional information
| DC-DC converter | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| LEDs | ||||||||||||||||||||
|
|
||||||||||||||||||||
| More | ||||||||||||||||||||
|
||||||||||||||||||||
Data sheets
| Data sheet SPA01W8_DPA01W8 | PDF(226.13 KB) |
|---|
