DC/DC PCB assembly

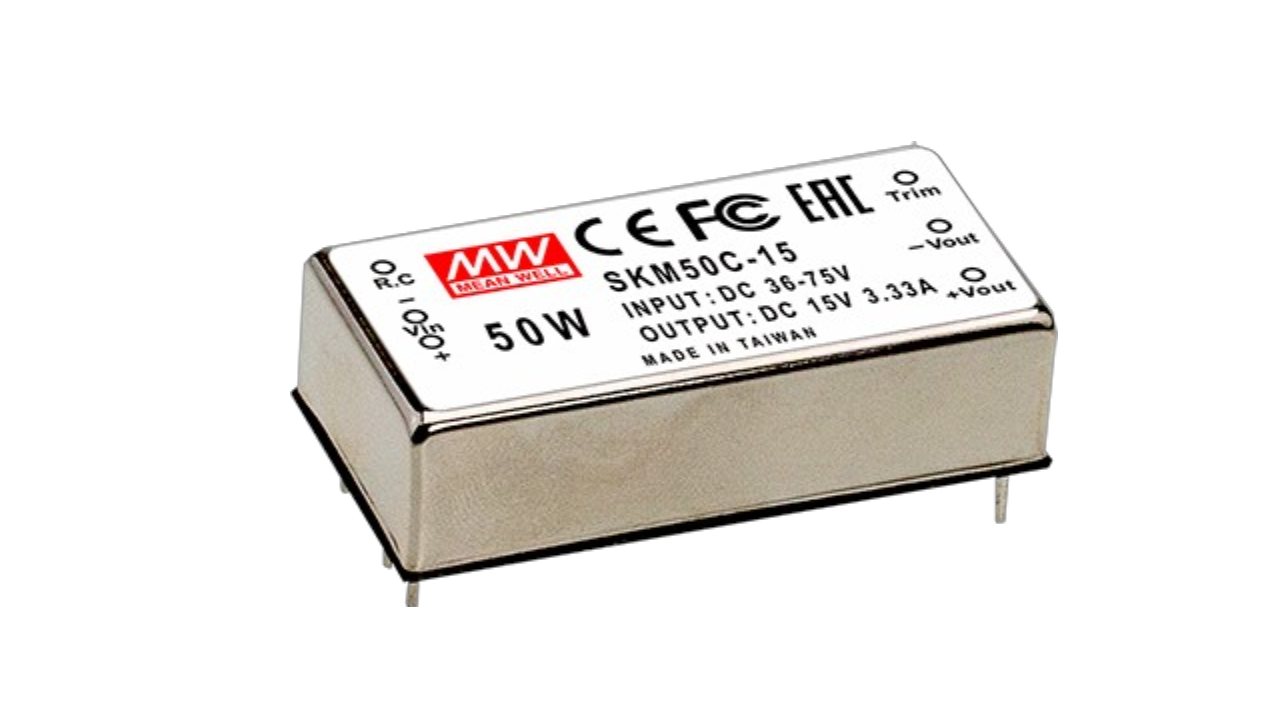

SKM50W8, 50W DC-DC converter with 8:1 input, 2″x1″ enclosure
CHF 50.00 excl. VAT, plus shipping costs
Item no:
n. a.
Description
SKM50W8 Series
Regulated single-output DC-DC converters with 50 W output power and an ultra-wide input voltage range from 9 to 75 Vdc.
Technical data
- 2″x1″ housing with standard industrial pinout
- 8:1 Input voltage range from 9 to 75Vdc
- Protection circuits: Short circuit (continuous), overload, overvoltage, undervoltage
- No minimum load required
- Remote ON/OFF
- Voltage Trim ±10%
- High efficiency of up to 90%
- 3-year manufacturer's warranty
Additional information
| DC-DC converter | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| Maintenance aids | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| SKM50W8 Data Sheet | PDF(245.6 KB) |
|---|
Downloads
| 3D STEP File SKM50W8 | Zip file (14.28 KB) |
|---|
