1W DC/DC converter, input 18...36V, output 5V/200mA, SIP8
CHF 6.65 excl. VAT, plus shipping costs
Description

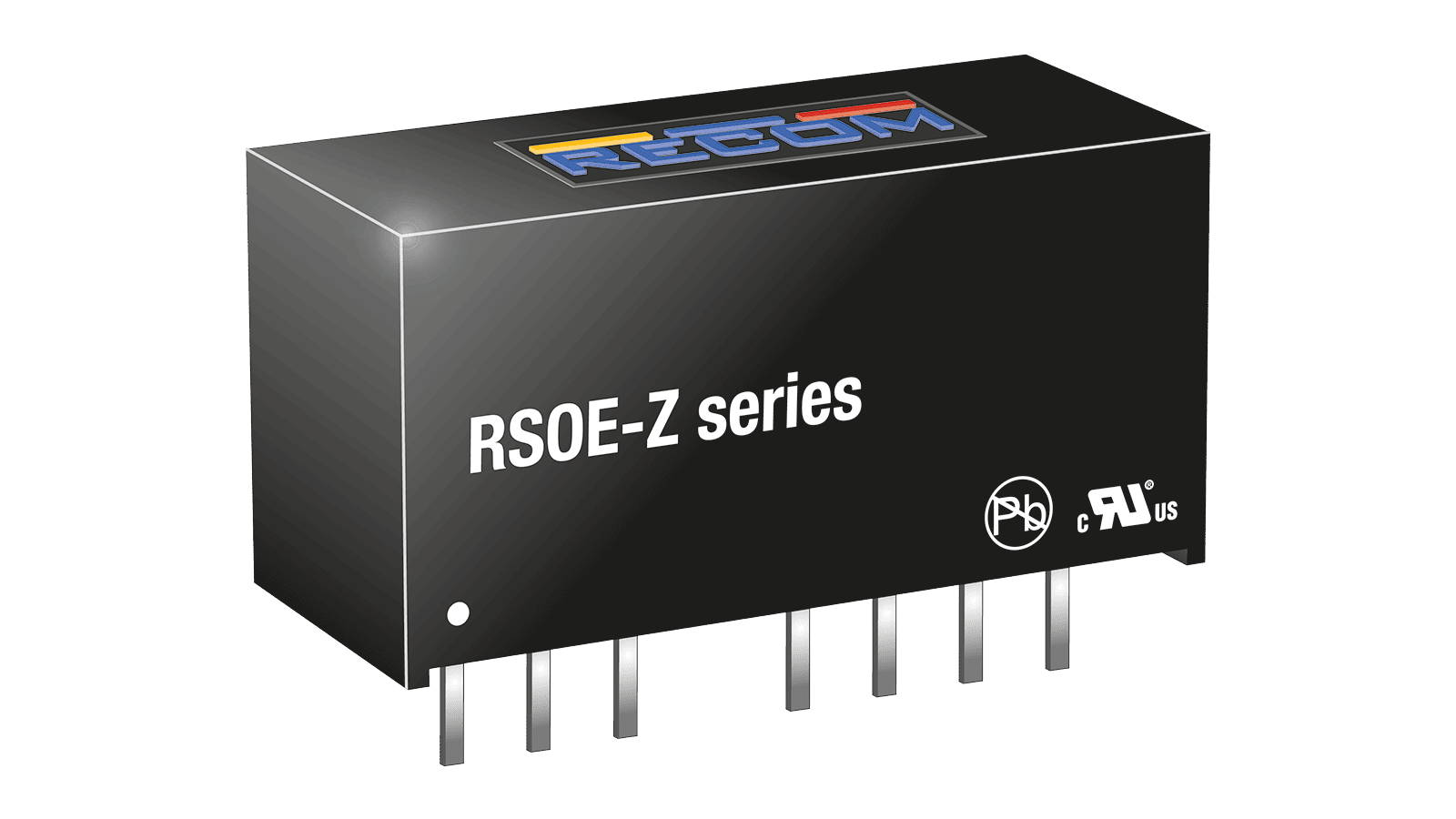

The RSOE-Z is a cost-effective isolated, regulated and short-circuit proof DC/DC converter designed for industrial applications. A compact SIP8 package, 4:1 input, 2kVDC isolation and a wide operating temperature range of -40°C to +80°C without derating make the RSOE-Z series ideal for industrial, transportation and general on-board 5V power supplies. Class A industrial EMC levels can be met with a simple Pi filter and the converters are supplied with a three-year warranty.
Technical data
- 4:1 wide entrance area
- 2kVDC/1 second Insulation
- Operating temperature from -40°C to +80°C at full load
- Pin assignment according to industry standard (SIP8)
- EN/UL62368 and UL60950 certified, CB report
- Cost-effective
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet RSOE | PDF(474.79 KB) |
|---|
Downloads
| 3D Step File RSOE | Zip file (47 KB) |
|---|
