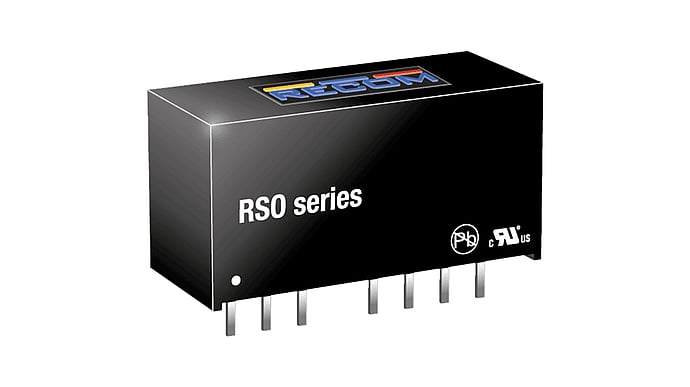

1W DC/DC converter, input 4.5...9.0V, output 5V/200mA, SIP8
CHF 17.15 excl. VAT, plus shipping costs
Description
High power density, an industrial temperature range of -40°C to +100°C and additional features such as on-off control are just some of the features of this converter, which is ideal for advanced industrial designs. The RSO series is available with 2kV or 3kV isolation when the "/H2" or "/H3" option is selected. The standard version offers an input voltage range of 2:1, while the "Z" version offers an input voltage range of 4:1, covering both 5V and 12V.
Technical data
- 2:1 and 4:1 Wide input voltage range
- SIP8 Housing shape
- UL94V-0 Housing material
- Continuous short-circuit proof
- Low noise
- 1kVDC, 2kVDC or 3kVDC insulation
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet RSO | PDF(276.99 KB) |
|---|
Downloads
| 3D Step File RSO | Zip file (47.08 KB) |
|---|
