2W DC/DC converter, input 4.5...36V, output 5V/400mA
CHF 7.20 excl. VAT, plus shipping costs
Description

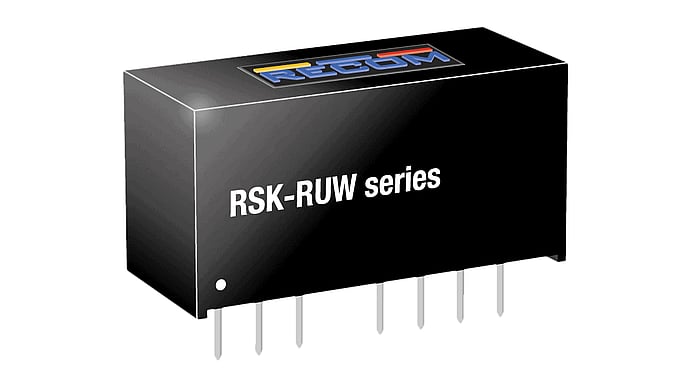

The RSK-RUW series is a state-of-the-art isolated DC/DC converter with an extremely wide 8:1 input voltage range of 4.5-36 VDC. The RSK-RUW also features ON/OFF control for added convenience and precision. The device offers high accuracy and precise line and load regulation, ensuring stable performance even under difficult conditions. The RSK-RUW also features continuous short circuit protection and an undervoltage lockout (UVLO) for added safety. This product is certified according to IEC/EN/UL 62368-1 and is therefore suitable for use in a wide range of industrial applications. With a maximum output power of 2 W and the ability to operate at 0% minimum load, the RSK-RUW is very versatile. The device also offers high efficiency with a typical value of 88.5%. Finally, the RSK-RUW offers a basic isolation of 3kVDC/1min and an industrial operating temperature range of -40°C to 85°C without derating, making it ideal for use in demanding industrial environments.
Technical data
- 8:1 wide input voltage range
- SIP8 housing
- Continuous short-circuit protection
- No minimum load required
- 3kVDC/1min Basic insulation
- 88.5% typical efficiency
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RSK-RUW | PDF(711.05 KB) |
|---|
Downloads
| 3D Step File RSK-RUW | Zip file (210.16 KB) |
|---|
