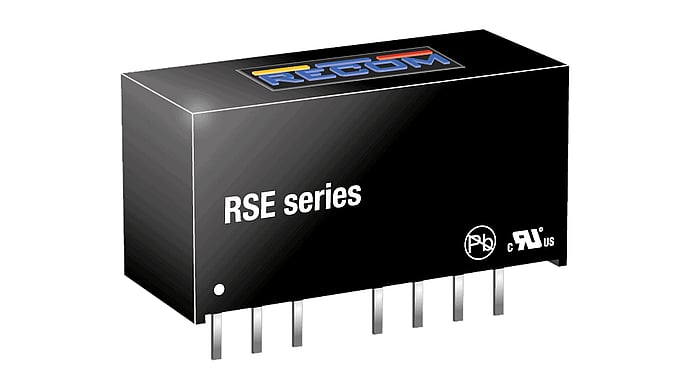

3W DC/DC converter, input 18...36V, output 5V/600mA, SIP8
CHF 6.65 excl. VAT, plus shipping costs
Description
RSE-2405S/H2 is a cost-effective isolated, regulated and short-circuit proof DC/DC converter designed for industrial applications. A compact SIP8 package, 2:1 input, 2kVDC isolation and a wide operating temperature range of -40°C to +75°C without derating make the RSE series ideal for industrial, transportation and general on-board 5V power supplies. Class A industrial EMC levels can be met with a simple Pi filter.
Technical data
- 2:1 Wide entrance area
- 2kVDC/1 second Insulation
- -40°C to +75°C Operating temperature at full load
- Pin assignment according to industry standard (SIP8)
- EN/UL62368 and UL60950 certified, CB report
- Cost-effective
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| RSE data sheet | PDF(463.57 KB) |
|---|
Downloads
| 3D Step File RSE | Zip file (46.85 KB) |
|---|
