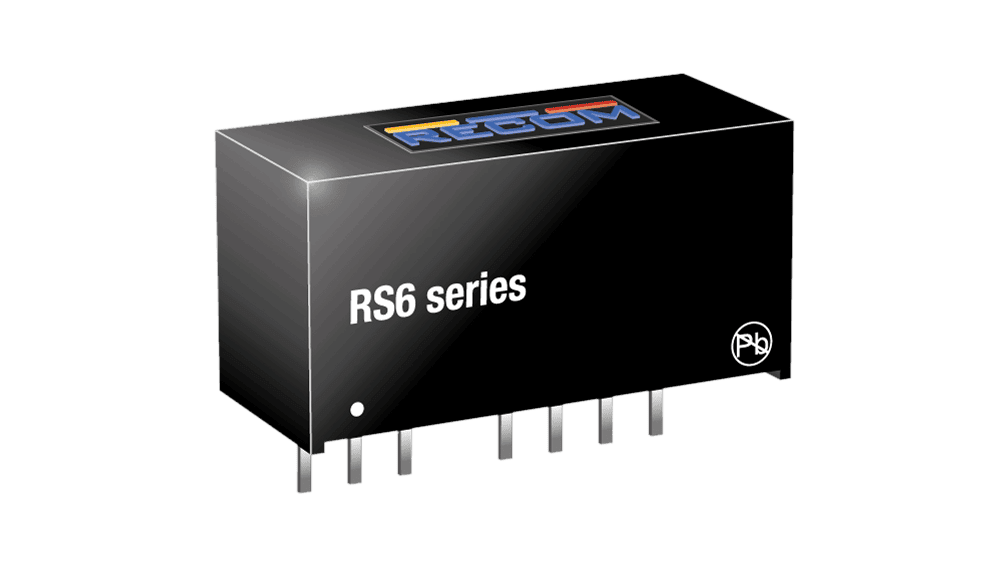

6W DC/DC converter, input 9...18V, output 10.8...13.2V/500mA, SIP8
CHF 13.05 excl. VAT, plus shipping costs
Description
The RS6 series offers a very high power density (2.7 W/cm³), a wide input voltage range and an industrial operating temperature range of -40°C to +75°C without derating. High efficiency, tight regulation, 2kVDC isolation and remote turn-on are just some of the features of this advanced SIP8 6W converter, which is ideal for high density power supply designs in demanding industrial applications.
Technical data
- Highest power density in the SIP8 housing
- 1.6kVDC/1 minute Insulation
- Efficiency of up to 88
- Operating temperature range from -40°C to +75°C at full load
- EN60950 and IEC/EN62368-1 certified
- Pinout according to industry standard
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RS6 | PDF(955.5 KB) |
|---|
Downloads
| 3D Step File RS6 | Zip file (47.02 KB) |
|---|
