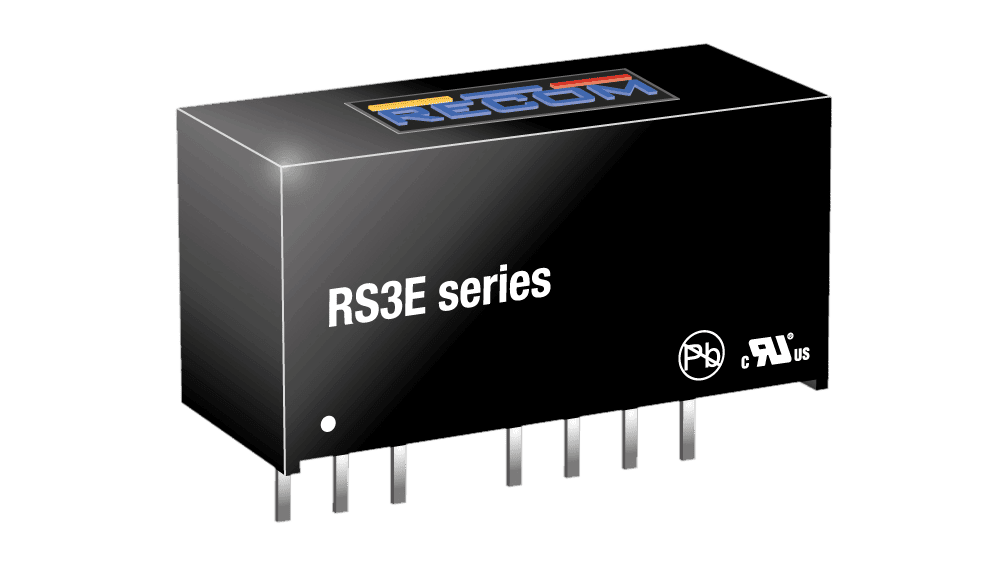

3W DC/DC converter, input 9...18V, output 5V/600mA, SIP8
CHF 8.05 excl. VAT, plus shipping costs
Description
RS3E-1205S/H3 offers a very high power density, a wide input voltage range, high 3kVDC isolation and an industrial operating temperature range of -40°C to +70°C without derating.
High efficiency, precise regulation and remote ON/OFF control are just some of the features of this advanced, cost-effective SIP8 3 Watt converter, which is ideal for advanced, high-density power supply designs in demanding industrial applications.
Technical data
- 2:1 Entrance area
- 3kVDC/1 minute insulation
- Operating temperature range from -40°C to +70°C (full load)
- IEC/EN62368-1 2nd & 3rd Ed. certified
- UL/CSA/CAN 62368-1 certified
- Pin assignment according to industry standard (SIP8)
- Cost-effective
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RS3E | PDF(355.57 KB) |
|---|
Downloads
| 3D Step File RS3E | Zip file (51.84 KB) |
|---|
