11W DC/DC converter, input 2.75...6V, output 0.6...5.74V/2000mA, QFN, T&R
CHF 1.50 excl. VAT, plus shipping costs
Description

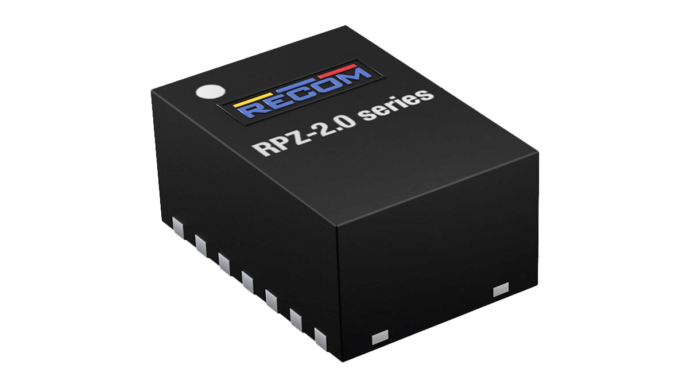

The RPZ-2.0 is a synchronous step-down converter with integrated inductance in a tiny, 2.5 mm x 3.5 mm x 1.6 mm, thermally optimized QFN housing. The input range extends from 2.75 to 6VDC. The output voltage can be adjusted with two resistors in the range from 0.6V to 5.74V. The output current is up to 2A and is fully protected against continuous short circuits, output overcurrent or overtemperature faults. Due to its high current and small size, the RPZ-2.0 is ideal for imaging systems, distributed power supply architectures, optical modules, FPGA, ASIC and DSP power supplies as well as portable battery powered devices in telecom and industrial applications.
Tape & reel packaging
Technical data
- 2.75 - 6VDC Input range
- Low profile 1.6 mm
- Ultra-compact footprint 2.5×3.5mm
- Adjustable output 0.6 to 5.74V
- 2A Output current
- Up to 90°C ambient temperature at full load
- Integrated solution
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Specification RPZ-2.0 | PDF(853.24 KB) |
|---|
Downloads
| 3D Step File RPZ-2.0 | Zip file (296.99 KB) |
|---|
Accessories
-
RPZ-2.0-EVM-1
Evaluation Board RPZ-2.0 DC/DC converterCHF 55.75Available to order
