7.5W DC/DC converter, input 4...36V, output 0.8...34.8V/1500mA, QFN

Name: RPY-1.5Q-R - Recom - 7.5W DC/DC converter, input 4...36V, output 0.8...34.8V/1500mA, QFN
Brand: Recom
SKU: RPY-1.5Q-R
Price: 4.40 CHF
Availability: InStock

CHF 4.40 excl. VAT, plus shipping costs

Item no: RPY-1.5Q-R

In stock: Available to order

Packaging ex works: 500 piece

Recommend:

Delivery time request Print PDF

Description

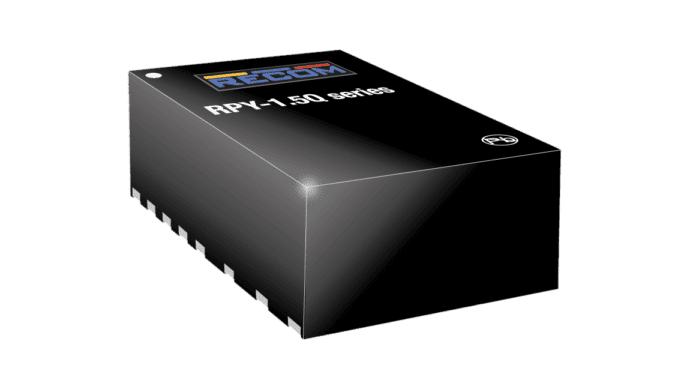

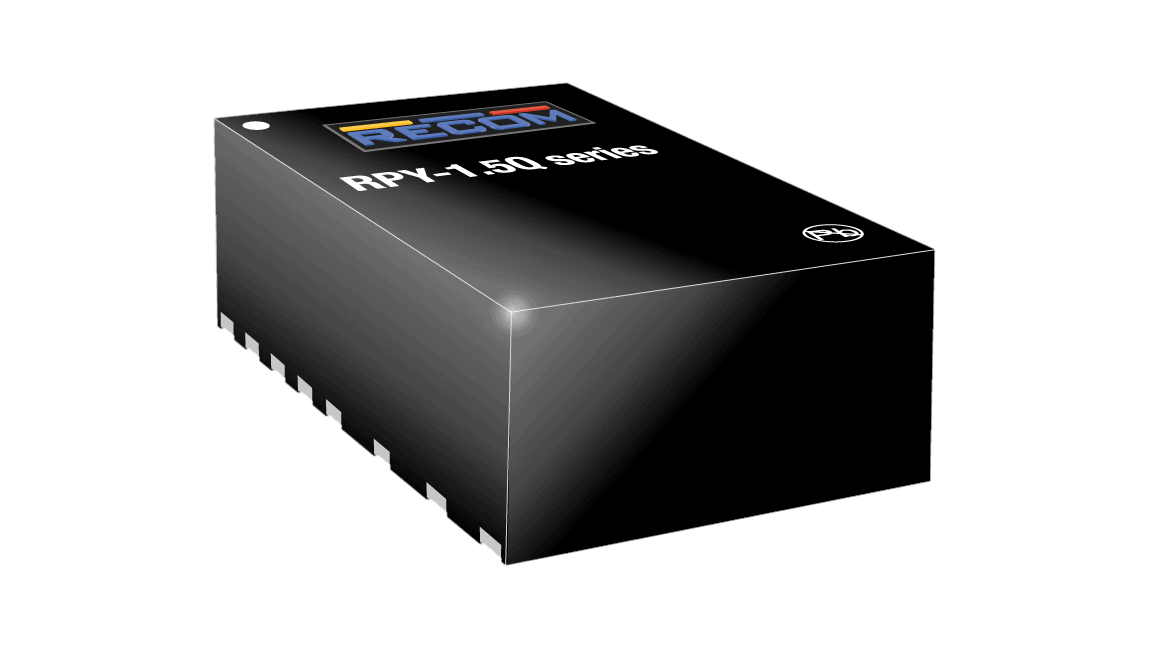

The RPY-1.5Q is an automotive grade constant current source buck regulator designed to operate high power LEDs. The integrated inductor means that a complete LED driver can be realized in a compact, 3 x 5 x 1.6mm, thermally optimized QFN package with a maximum output current of up to 1500mA, which is set with an external measuring resistor. The input voltage range extends from 4 to 36VDC, so that 5V, 12V or 24V supply voltages can be used. The output is fully protected against continuous short circuits, input undervoltage, output overcurrent or overtemperature. A fault indicator signals a thermal shutdown or LED open/short circuit condition. Applications include dimmable LED lighting, visible or IR LED lighting for drones and robotic camera systems or precise high current CC sources for test and measurement purposes.

Technical data

AEC-Q100-qualified constant current power module with integrated shielded coil
36VDC input voltage step-down regulator
1.5A output current with 0-100% PWM dimming
SCP, OCP, OTP and UVLO protection
3.0 x 5.0 mm flat QFN housing
Enable, error, thermal shutdown and soft start functions
Operating temperature from -40 to 125°C

Additional information

DC-DC converter

Output voltage (Vdc)	1.2, 1.5, 1.8, 2.5, 3.3, 5, 5.1, 6.5, 7.2, 9, 12, 15, 18, 20, 24, 28, 30
Output voltage range (Vdc)	0.8...34.8
Power (W)	7.5
Output current (mA)	250, 350, 500, 700, 1050, 1500
Nominal input voltage (Vdc)	5, 9, 12, 15, 24
Input voltage ratio	9:1
I/O isolation	not isolated
Regulation	Regulated
Design	QFN
Length (mm)	3.0
Width (mm)	5.0
Height (mm)	1.6
Manufacturer	Recom
