10W DC/DC converter, input 5.5...36V, output 5.5...36V/2000mA, LGA
CHF 4.80 excl. VAT, plus shipping costs
Description

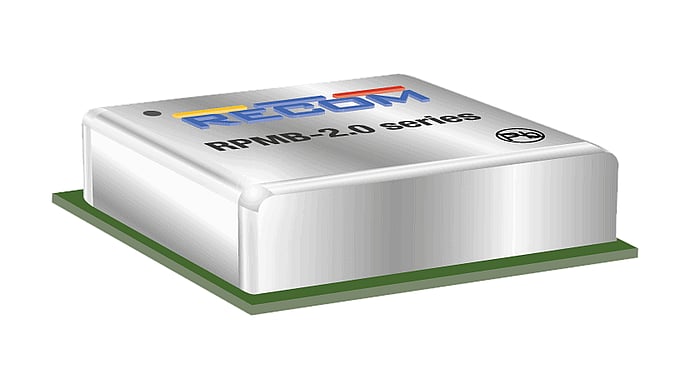

The RPMB-2.0 series is a non-isolated 2A SMD switching regulator power module with up to 36V input voltage. Despite its compact LGA footprint and low profile (12.2×12.2×3.75mm), it offers a full range of features including adjustable output from 1V up to 24V, on/off control, sense and power good output signals. With an efficiency of up to 94%, which remains almost constant over a load range of 5% to 100%, the device can be operated at ambient temperatures of up to +100°C without forced air cooling. The housing is complete with 6-sided shielding for optimum EMC performance and excellent thermal management.
The fully protected module (UVLO, SCP, OCP, OTP) can drive high capacitive loads of up to 0.2F.
Technical data
- 36V 2A SMD power module
- High power density in 12.2×12.2×3.75mm housing
- -40°C to +100°C with derating, convection-cooled
- Efficiency of up to 94
- 6-sided shielding
- Thermally improved 25 pad LGA housing (DOSA-compliant)
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet RPMB-2.0 | PDF(279.79 KB) |
|---|
Downloads
| 3D Step File RPMB-2.0 | Zip file (392.15 KB) |
|---|
