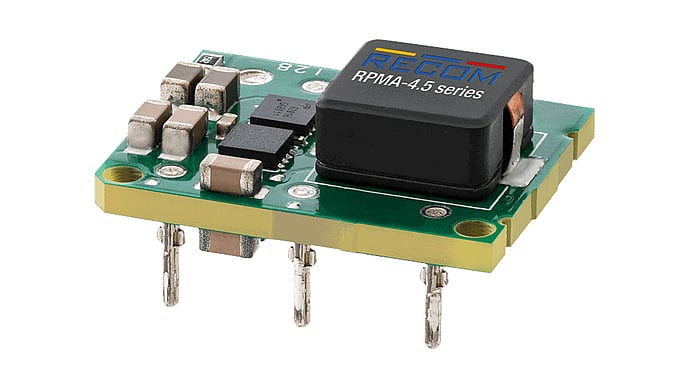

135W DC/DC converter, input 9...53V, output 5...30V/4500mA, 1/32 brick

Name: RPMA5.0-4.5/OF - Recom - 135W DC/DC converter, input 9...53V, output 5...30V/4500mA, 1/32 brick
Brand: Recom
SKU: RPMA5.0-4.5/OF
Price: 29.40 CHF
Availability: InStock

CHF 29.40 excl. VAT, plus shipping costs

Item no: RPMA5.0-4.5/OF

In stock: Available to order

Packaging ex works: 20 piece

10+ ~~CHF 29.40~~ CHF 28.10 (4%save)

25+ ~~CHF 28.10~~ CHF 26.90 (8%save)

Recommend:

Delivery time request Print PDF

Description

The RPMA5.0-4.5/OF is a highly efficient, non-isolated step-down converter with an output current of up to 4.5A on a footprint of 1/32 brick. The input voltage range is 9-53VDC and the output voltage is trimmable from 5-30VDC via a fixed trimming resistor. Typical applications for these extremely compact, reliable converters include voltage conversion in decentralized power supply architectures of 12, 24, 28, 36 and 48V bus systems for industrial, medical, test and measurement and telecommunications equipment. With an efficiency of up to 98%, the converter operates at temperatures from -40°C to +85°C and comes with RECOM's standard 3-year warranty.

Technical data

4.5A industrial-grade, non-isolated DC/DC
Compact, industry-standard 1/32 brick format
Efficiency of up to 98
9-53V Input voltage
5-30V adjustable output voltage

Additional information

DC-DC converter

Output voltage (Vdc)	5, 6.5, 7.2, 9, 12, 15, 18, 20, 24, 28
Output voltage range (Vdc)	5...30
Power (W)	135
Output current (mA)	4500
Nominal input voltage (Vdc)	12, 24, 36, 48
I/O isolation	not isolated
Regulation	Regulated
Design	1/32 Brick
Length (mm)	19.1
Width (mm)	23.4
Height (mm)	9.6
Manufacturer	Recom

LEDs

Input voltage range (Vdc)	9...53
Temperature range	-40…+85°C
Efficiency typ.	96%

Data sheets

Data sheet RPMA-4.5	PDF(1 MB)

Downloads

3D Step File RPMA5.0-4.5_OF	Zip file (524.71 KB)
