19.8W DC/DC converter, input 4...15V, output 3.3V/6000mA, LGA

Name: RPM3.3-6.0 - Recom - 19.8W DC/DC converter, input 4...15V, output 3.3V/6000mA, LGA
Brand: Recom
SKU: RPM3.3-6.0
Price: 5.70 CHF
Availability: InStock

CHF 5.70 excl. VAT, plus shipping costs

Item no: RPM3.3-6.0

In stock: Available to order

Packaging ex works: 500 piece

Recommend:

Delivery time request Print PDF

Description

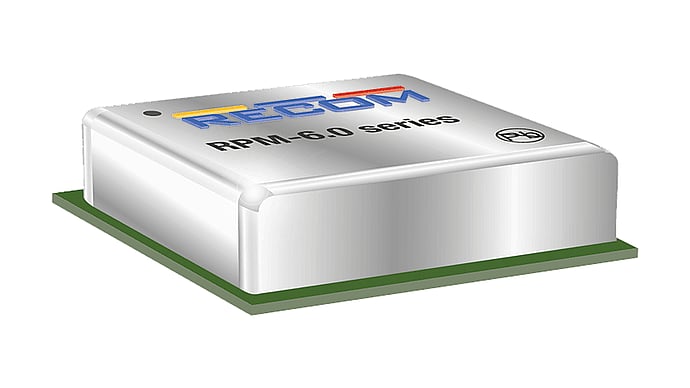

The RPM-6.0 series is a 6A non-isolated switching regulator power module with a range of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of just 3.75mm, but with an efficiency of up to 99%, the device can operate at full load in ambient temperatures of up to +90°C without forced air cooling. The housing is complete with 6-sided shielding for optimum EMC performance and excellent thermal management.

Technical data

High power density (LxWxH = 12.19 x 12.19 x 3.75mm)
Wide operating temperature range -40°C to +90°C at full load
Efficiency of up to 99%, no heat sinks required
6-sided shielding
Thermally and EMC-optimized LGA housing with 25 pads
Compact DOSA-compatible footprint
Low profile

Additional information

DC-DC converter

Output voltage (Vdc)	3.3
Power (W)	19.8
Output current (mA)	6000
Nominal input voltage (Vdc)	5, 9, 12
I/O isolation	not isolated
Regulation	Regulated
Design	LGA
Length (mm)	12.19
Width (mm)	12.19
Height (mm)	3.75
Manufacturer	Recom
