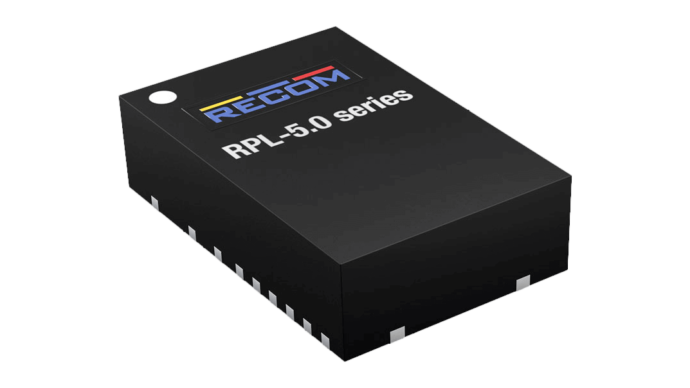

60W DC/DC converter, input 2.75...17V, output 0.6...12V/5000mA, QFN
CHF 5.60 excl. VAT, plus shipping costs
Description
RECOM's RPL-5.0 series is a cutting-edge power module technology product that sets a new standard for compactness and performance within its portfolio. This state-of-the-art, non-isolated step-down power module has been carefully designed to be the smallest and most powerful in its class, epitomizing innovation and efficiency. The RPL-5.0 series features a state-of-the-art step-down power module with integrated shielded inductor. With a maximum input voltage of 17 V, it ensures stable and reliable power conversion and covers a wide range of point-of-load applications with precision. This module offers unparalleled flexibility by allowing programmable output voltages from 0.6V to 12V. This adaptability makes the RPL-5.0 series a versatile solution that can be seamlessly integrated into a variety of system requirements. With a maximum output current of up to 5A, this power module is designed for the dynamic requirements of modern electronics. Safety is built into the design, providing short circuit protection (SCP), over current protection (OCP) and undervoltage lockout (UVLO) to ensure the longevity and protection of connected devices.
Technical data
- Buck regulator power module with integrated shielded inductance
- 17V maximum input voltage
- Programmable 0.6 - 12V output voltage
- 5A maximum output current
- SCP, OCP and UVLO protection
- 4mm x 6mm x 1.6mm QFN housing
- Flip-chip technology for improved thermal management
- Efficiency of up to 90%
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet RPL-5.0 | PDF(858.7 KB) |
|---|
Downloads
| 3D Step File RPL-5.0 | Zip file (49.91 KB) |
|---|
Accessories
-
RPL-5.0-EVM-1
Evaluation Board RPL-5.0 DC/DC ConverterCHF 71.05Available to order
