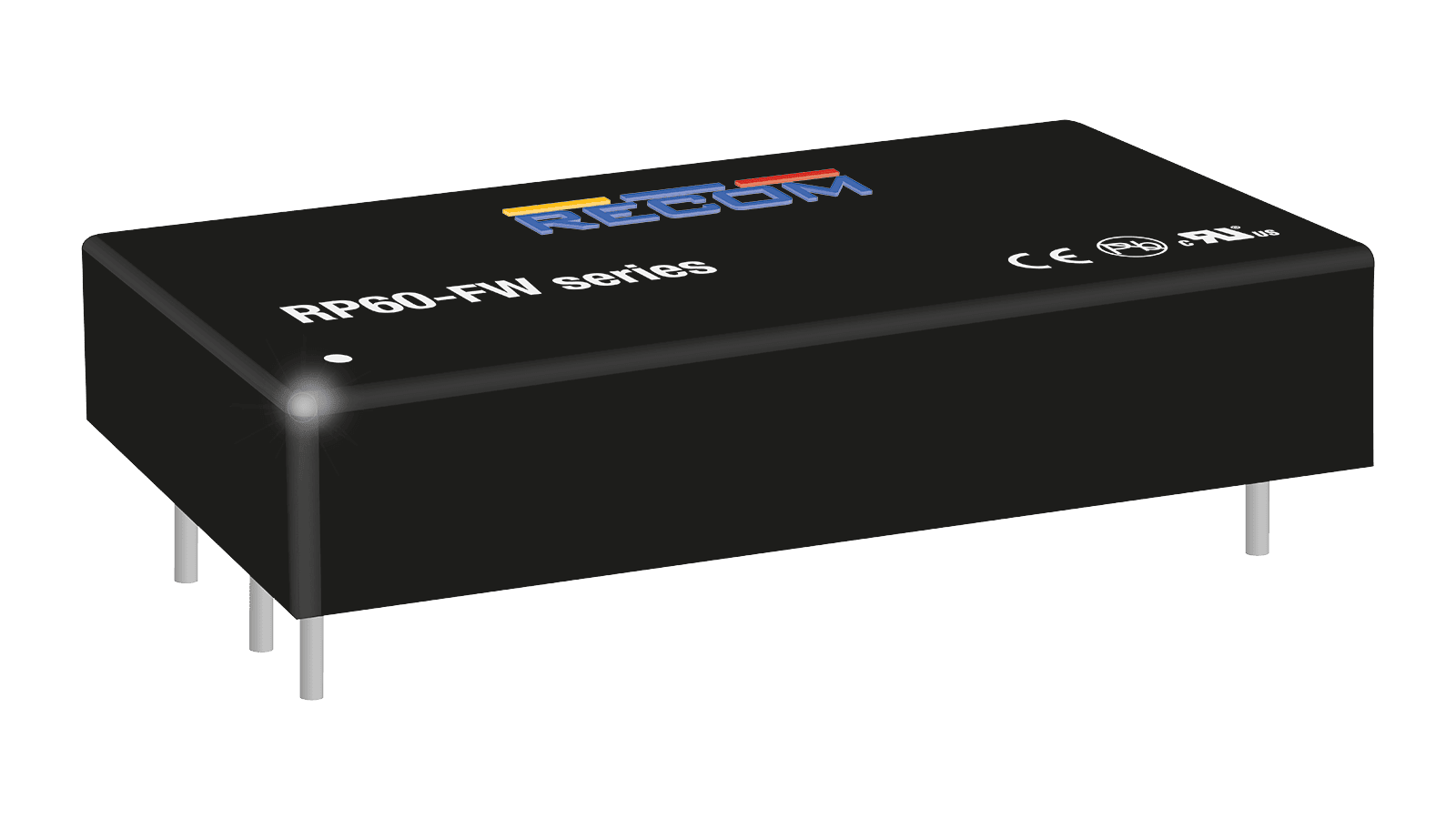

60W DC/DC converter, input 9...36V, output 10.8...13.2V/5000mA, 2″x1″
CHF 59.20 excl. VAT, plus shipping costs
Description
The RPA60-FW series are 60 W DC/DC converters with high power density and a wide input voltage range in an industry standard 2 "x1" housing. Despite their small size, the RPA60-FW converters are fully specified devices with output currents up to 12 A, efficiency up to 93%, no minimum load, 1600 VDC isolation, tight regulation and low ripple/noise levels. The trimmable outputs are also fully protected against overtemperature, short circuit, overcurrent and overvoltage. The operating temperature range extends from -40°C to 46°C without derating. The converters are UL and EN50155 certified and are used in many railroad and industrial applications where board space is at a premium.
Technical data
- 4:1 Wide input voltage range
- 1.5kVDC insulation
- UL, IEC/EN60950-1 & EN50155 certified
- Efficiency of up to 93.3%
- OVP, OCP & OTP
- Operating temperature -40°C to +105°C with power reduction
Additional information
| DC-DC converter | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet RPA60 | PDF(253.11 KB) |
|---|
Downloads
| 3D Step File RPA60-FW | Zip file (157.99 KB) |
|---|
