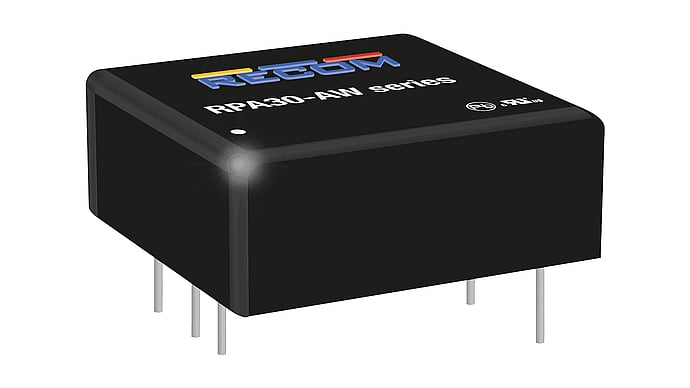

30W DC/DC converter, input 9...36V, output +-15V/+-1000mA, 1″x1″
CHF 47.25 excl. VAT, plus shipping costs
Description
The RPA30-AW series are high power density 30W DC/DC converters with a wide input voltage range in a 1 "x1" industry standard package. Despite their small size, the RPA30-AW converters are fully specified devices with output currents up to 7.5A, up to 89% efficiency, no minimum load, 1600VDC isolation, tight regulation and low ripple/noise. The outputs are also fully protected against over temperature, short circuit, over current and over voltage and the single output version offers a trim range of ±10%. A heatsink option is available to extend the operating temperature range up to 56°C without derating. The converters are UL and EN50155 certified and are used in many railroad and industrial applications where board space is at a premium.
Technical data
- 4:1 Wide input voltage range
- 1.6kVDC insulation
- UL, IEC/EN60950-1 & EN50155 certified
- Efficiency of up to 89
- OVP, OCP & OTP
- Operating temperature -40°C to +105°C with derating
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet RPA30 | PDF(507.34 KB) |
|---|
Downloads
| 3D Step File RPA30-AW | Zip file (72.19 KB) |
|---|
