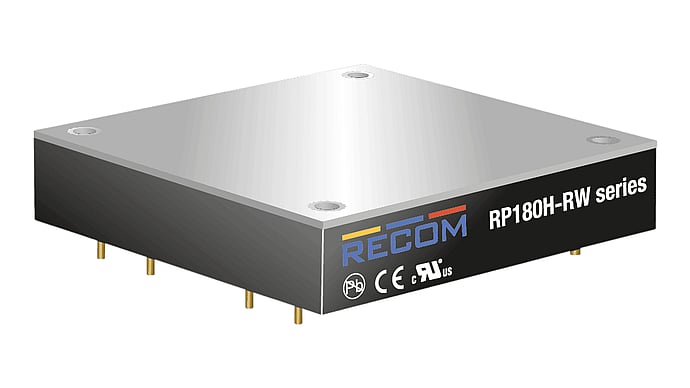

180W DC/DC converter, input 43...160V, output 48V/3.8A, half brick

Name: RP180H-11048SRW/P - Recom - 180W DC/DC converter, input 43...160V, output 48V/3.8A, half brick
Brand: Recom
SKU: RP180H-11048SRW/P
Price: 189.25 CHF
Availability: InStock

CHF 189.25 excl. VAT, plus shipping costs

Item no: RP180H-11048SRW/P

In stock: Available to order

Packaging ex works: 2 piece

10+ ~~CHF 189.25~~ CHF 180.75 (4%save)

25+ ~~CHF 180.75~~ CHF 173.00 (8%save)

Recommend:

Delivery time request Print PDF

Description

The RP180H series half-brick DC/DC converters are designed for rail vehicle and high voltage battery applications. Each series has three 4:1 input voltage ranges to cover all input voltages from 9 VDC to 160 VDC with isolated and regulated 5 V to 48 VDC outputs. The converters have high efficiency and metal base plates that allow a wide operating temperature range of -40 to +90°C (with forced air cooling). The housing is fitted with threaded inserts to allow secure fixing to the PCB or to a bulkhead for use in high shock and vibration environments. The converters are certified to EN50155, UL60950 and IEC/EN60950. The RP180H-RW series comes with a three-year warranty.

Technical data

Wide entrance area of 4:1
3kVAC reinforced insulation for 110Vin and 2.25kVDC basic insulation for 24Vin & 48Vin
Efficiency of up to 91
No minimum load required
UL60950-1, EN50155 and IEC/EN60950-1 certified

Additional information

DC-DC converter

Output voltage (Vdc)	48
Power (W)	180
Output current (mA)	3800
Nominal input voltage (Vdc)	110
Input voltage ratio	4:1
I/O isolation	3000Vac
Further functions	Remote ON/OFF
Design	Halfbrick
Length (mm)	61
Width (mm)	57.9
Height (mm)	12.7
Application	Railroad, ITE/AV
Manufacturer	Recom

LEDs

Input voltage range (Vdc)	43...160
Temperature range	-40…+115°C
Efficiency typ.	90%

Data sheets

Data sheet RP180H-RW	PDF(722.37 KB)
