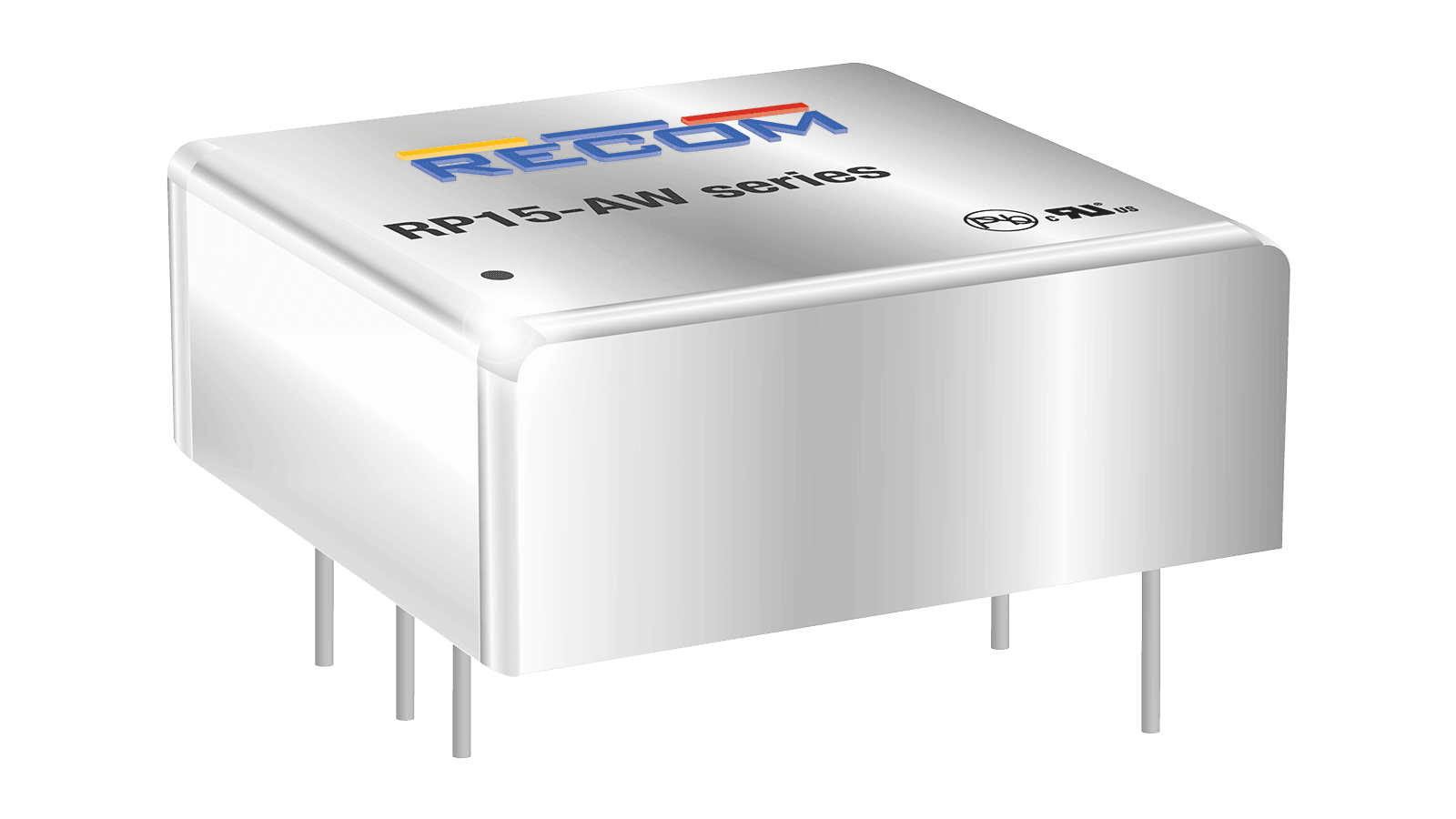

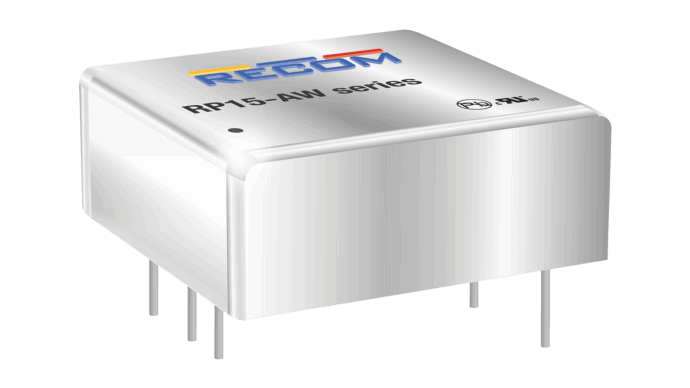

15W DC/DC converter, input 9...36V, output 5V/3000mA, 1″x1″
CHF 51.60 excl. VAT, plus shipping costs
Description
The RP15-AW series are ultra-miniaturized DC/DC converters with a wide input voltage range in a package that is only half the size of industry standard 15W converters. Despite their small size, the RP15-AW converters are fully specified devices with output currents up to 4 A, no minimum load, 1600 VDC isolation and low ripple/noise values. The outputs are also fully protected against short circuit, overcurrent and overvoltage. The RP15-AW series is used in many applications where board space and/or board height is limited.
Technical data
- 4:1 wide input voltage range
- 1.6kVDC insulation
- UL-certified
- Efficiency of up to 88
- Six-sided continuous shielding
- No minimum load required
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet RP15 | PDF(216.18 KB) |
|---|
Downloads
| 3D Step File RP15-AW | Zip file (25.88 KB) |
|---|
