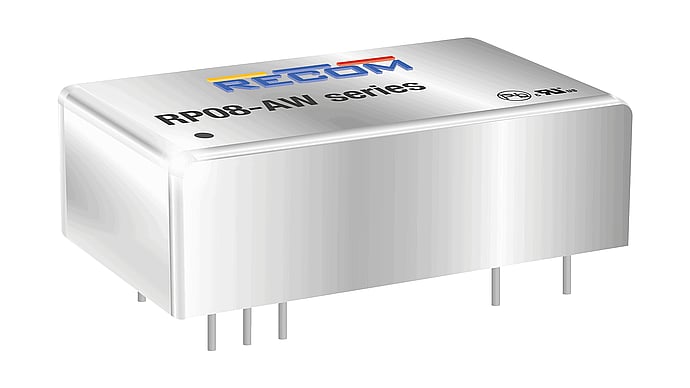

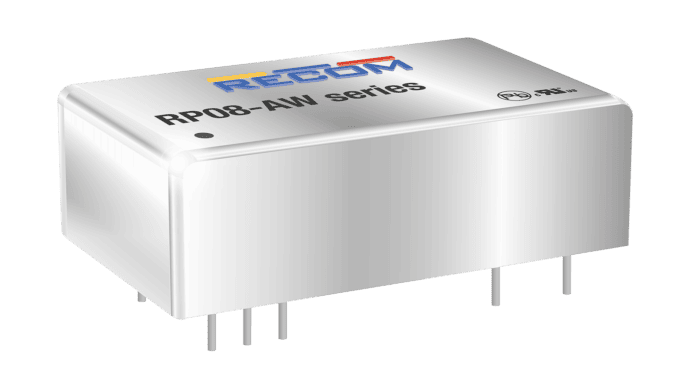

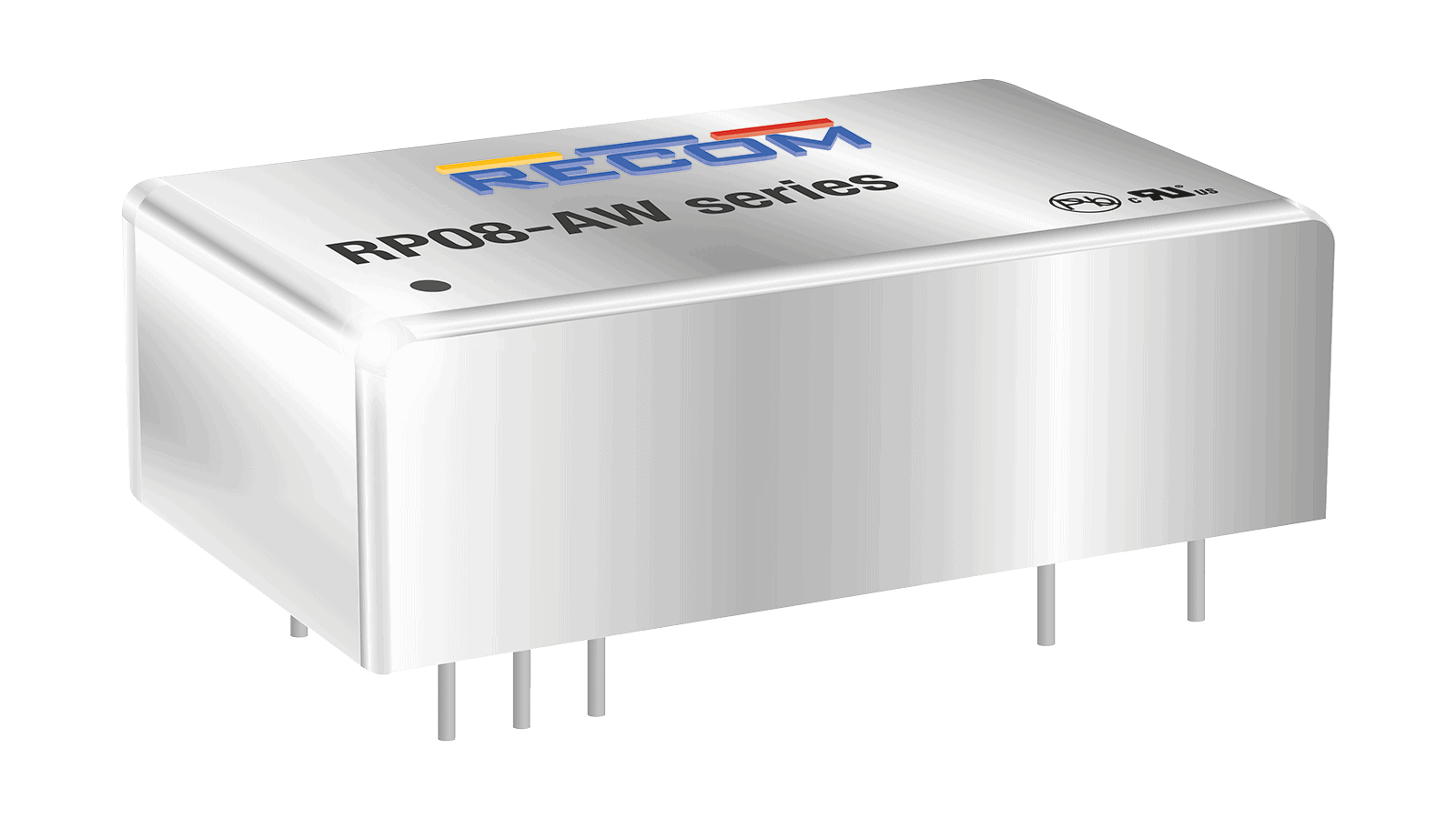

8W DC/DC converter, input 9...36V, output 5V/1600mA, DIP24
CHF 40.75 excl. VAT, plus shipping costs
Description
The RP08-AW series DC/DC converters with wide-range input are UL60950-1 and cUL 60950-1 certified. This makes them ideal for all telecommunications and industrial applications where recognized safety standards are required. The 24V and 110VDC input versions have been specifically designed for railroad applications. The DIP24 package is available in both pin and SMD versions and meets military standards for thermal shock and vibration tolerance.
Technical data
- 4:1 Wide input voltage range
- 1.6kVDC insulation
- UL60950-1, EN50155 certified
- Efficiency of up to 88
- Protected outputs
- High input voltage range (110VDC)
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet RP08 | PDF(217.62 KB) |
|---|
Downloads
| 3D Step File RP08-AW | Zip file (18.98 KB) |
|---|
