DC/DC PCB assembly
1W DC/DC converter, input 5V, output 5V/200mA , DIP6
CHF 5.95 excl. VAT, plus shipping costs
Item no:
RNM-0505S
In stock: Available to order
Packaging ex works:
60 piece
Description

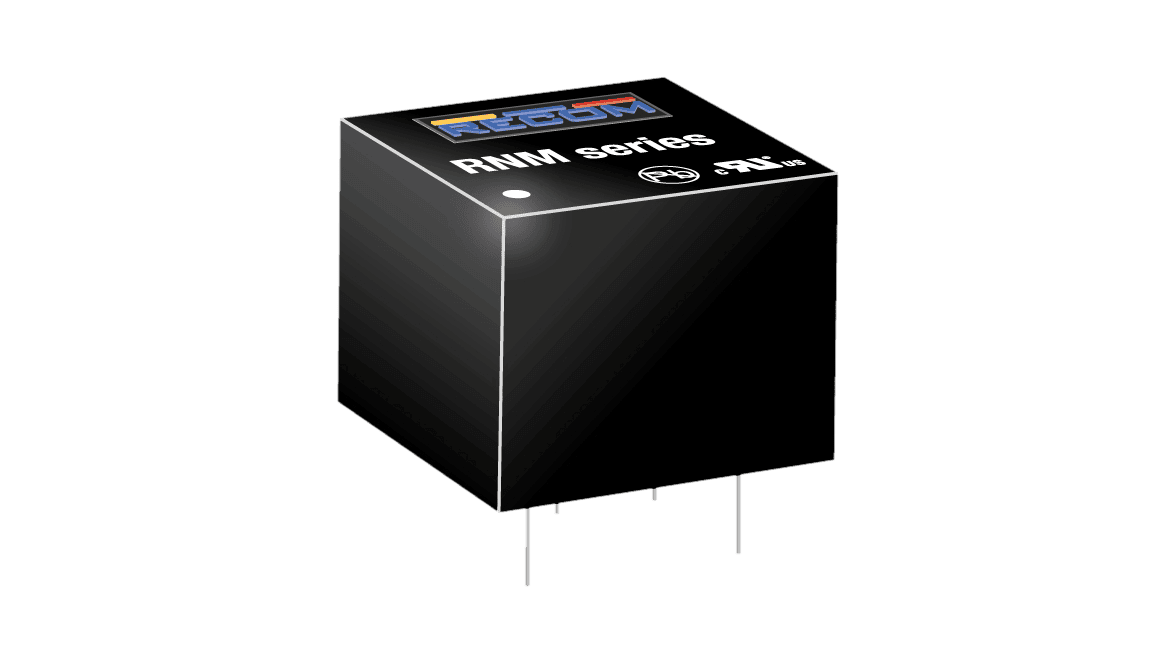

RNM-0505S is an ultra-compact isolated DC-DC converter with single output for applications with limited space on the PCB. Despite their small size, the converters are fully featured with an industrial operating temperature range of -40°C to +85°C without derating (+100°C with derating) and 1kVDC isolation.
Technical data
- Ultra-compact size - only 8.3 x 8.3 x 6.8 mm
- 1kVDC/1s basic insulation
- Fully encapsulated
- UL and EN certified, CB report
- Efficiency up to 84%
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RNM | PDF(293.33 KB) |
|---|
Downloads
| 3D Step File RNM | Zip file (7.73 KB) |
|---|
