DC/DC PCB assembly

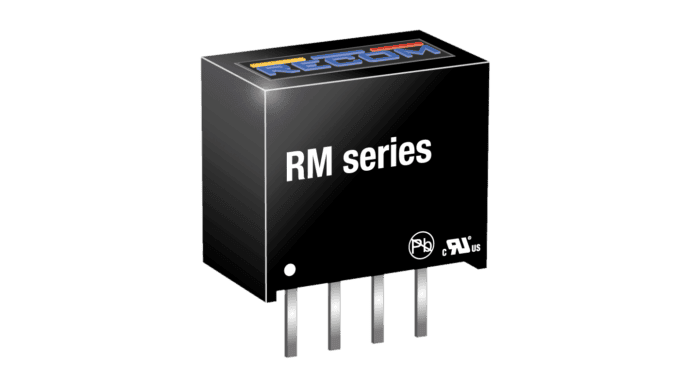

0.25W DC/DC converter, input 24V, output 5V/50mA, SIP4

CHF 5.90 excl. VAT, plus shipping costs

Item no: RM-2405S
In stock: Available to order
Packaging ex works: 42 piece
10+ CHF 5.90 CHF 5.65 (4%save)
25+ CHF 5.65 CHF 5.50 (6%save)
50+ CHF 5.50 CHF 5.40 (8%save)
100+ CHF 5.40 CHF 5.25 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

The RM series DC/DC converters have been developed for the isolation or conversion of DC power rails with very low loads. The efficiency is typically 10 % higher than comparable 0.5 W or 1 W converters operating at the same low load.

Technical data

  • Pin assignment according to industry standard
  • 1kVDC/1s basic insulation
  • High efficiency for low power applications
  • UL94V-0 housing material
  • Fully encapsulated
  • Efficiency of up to 76

Additional information

DC-DC converter
Output voltage (Vdc)

5

Power (W)

0.25

Output current (mA)

50

Nominal input voltage (Vdc)

24

Input voltage ratio

+/-10%

I/O isolation

1000Vdc

Regulation

Unregulated

Design

SIP4

Length (mm)

11.5

Width (mm)

6

Height (mm)

10

Application

ITE/AV

Manufacturer

Recom
LEDs
More
Input voltage range (Vdc)

21.6...26.4

Temperature range

-40…+85°C

Data sheets

Data sheet RM PDF(235.1 KB)

Downloads

3D Step File RM Zip file (43.7 KB)
