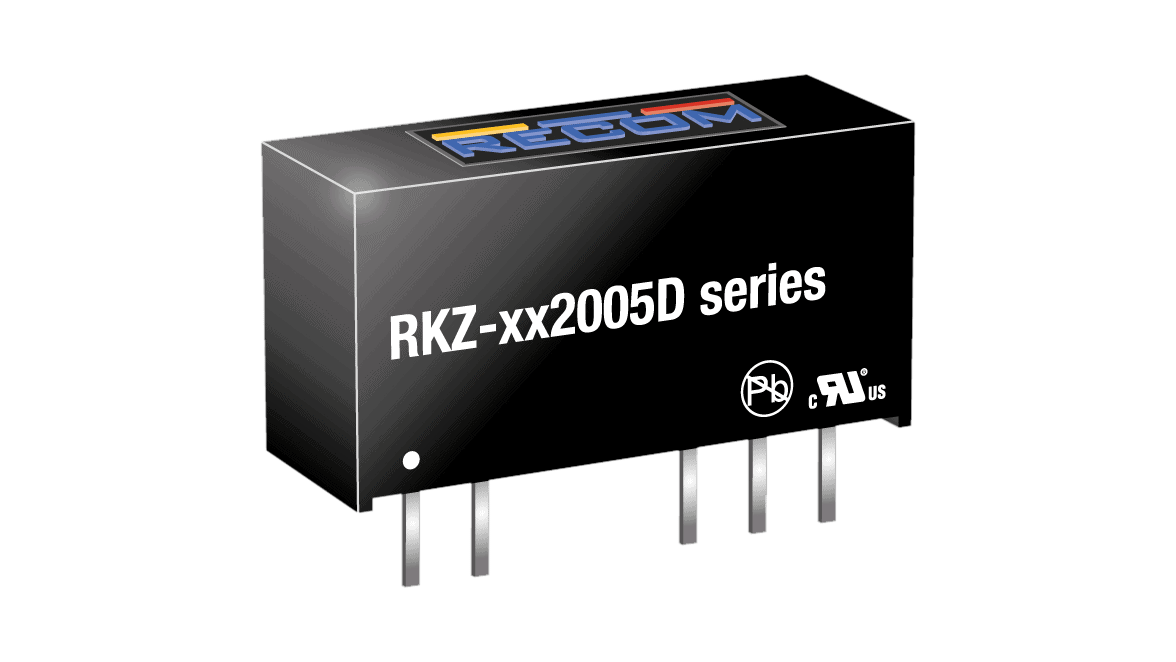

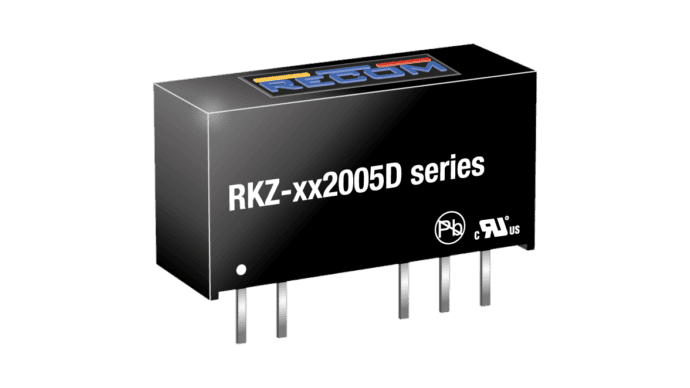

2W DC/DC converter, input 24V, output +20V/50mA;-5V/200mA, SIP7
CHF 6.35 excl. VAT, plus shipping costs
Description
RKZ-242005D is a DC/DC converter specially designed for SiC mosfet drivers. The module has an input voltage of 24VDC with two asymmetrical outputs of +20VDC and -5VDC. A special feature of this converter is the division of the output power: the RKZ-242005D can be used with loads of equal power (asymmetrical current) or equal current (asymmetrical power).
The module offers an insulation of 3kVDC. The operating temperature range of -40°C to +100°C (with derating) also meets higher temperature requirements.
Technical data
- Power Sharing
- High isolation 3kVDC for 1 second
- Efficiency of up to 87
- Wide operating temperature range from -40°C to +85°C without derating
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RKZ-xx2005D | PDF(906.78 KB) |
|---|
Downloads
| 3D Step File RKZ_xx2005D | Zip file (38.14 KB) |
|---|
