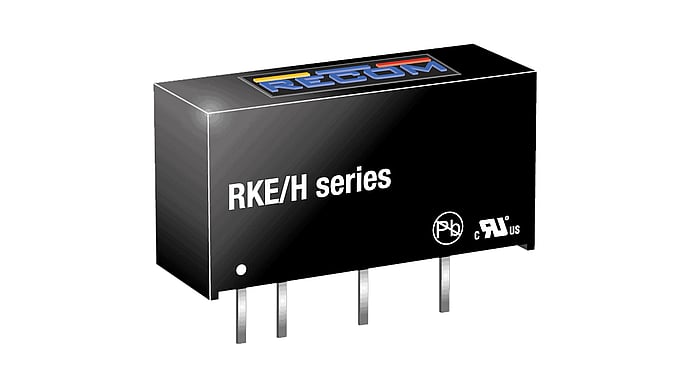

DC/DC PCB assembly
1W DC/DC converter, input 24V, output 5V/200mA, SIP7
CHF 4.25 excl. VAT, plus shipping costs
Item no:
RKE-2405S/H
In stock: Available to order
Packaging ex works:
25 piece
10+ CHF 4.25 CHF 4.05 (4%save)
25+ CHF 4.05 CHF 3.95 (7%save)
50+ CHF 3.95 CHF 3.90 (8%save)
100+ CHF 3.90 CHF 3.80 (10%save)
Description
The RKE/H DC/DC converters are typically used in cost-sensitive general purpose applications for power isolation and voltage matching. Despite their low cost, they are fully specified converters with 4kVdc isolation, an industrial operating temperature range of -40°C to +85°C without derating and UL/EN certifications.
Technical data
- Cost-effective
- 1:1 Input voltage range
- Efficiency of up to 81
- 4kVDC/1 second insulation
- IEC/EN/UL-certified
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RKE/H | PDF(226.11 KB) |
|---|
Downloads
| 3D Step File RKE/H | Zip file (36.86 KB) |
|---|
