3W DC/DC converter, input 24V +/-10%, output 24V/125mA, SIP16
CHF 20.20 excl. VAT, plus shipping costs
Description

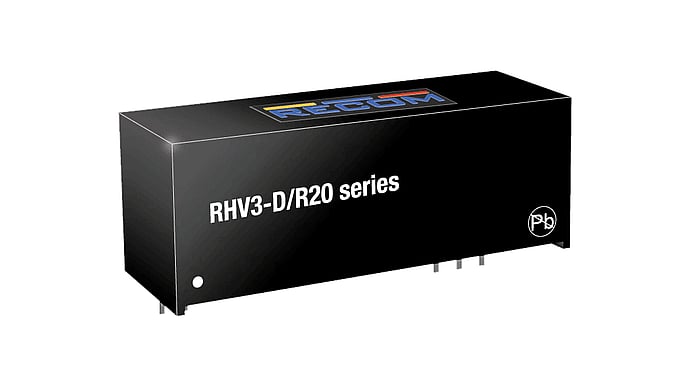

The RHV3 is a DC/DC converter with exceptionally high isolation of 20 kVDC (12.5 kVAC/1 minute) in a compact SIP16 housing. The input voltages can be 5, 12 or 24VDC and the outputs 5V, 12V, 24V, ±5V or ±12V. The operating temperature is -40°C to +80°C without derating. Applications include high vacuum monitoring, X-ray equipment, HVAC dust extraction systems and other industrial high voltage applications where a very high isolation remote power supply is required.
Technical data
- 12.5kVAC/1 minute Insulation
- Compact SIP16 housing with >30mm pin spacing
- Low 4pF maximum insulation capacitance
- Wide operating temperature range from -40°C to +80°C at full load
- Efficiency of up to 81
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RHV3 | PDF(381.32 KB) |
|---|
Downloads
| 3D Step File RHV3 | Zip file (31.7 KB) |
|---|
