DC/DC PCB assembly

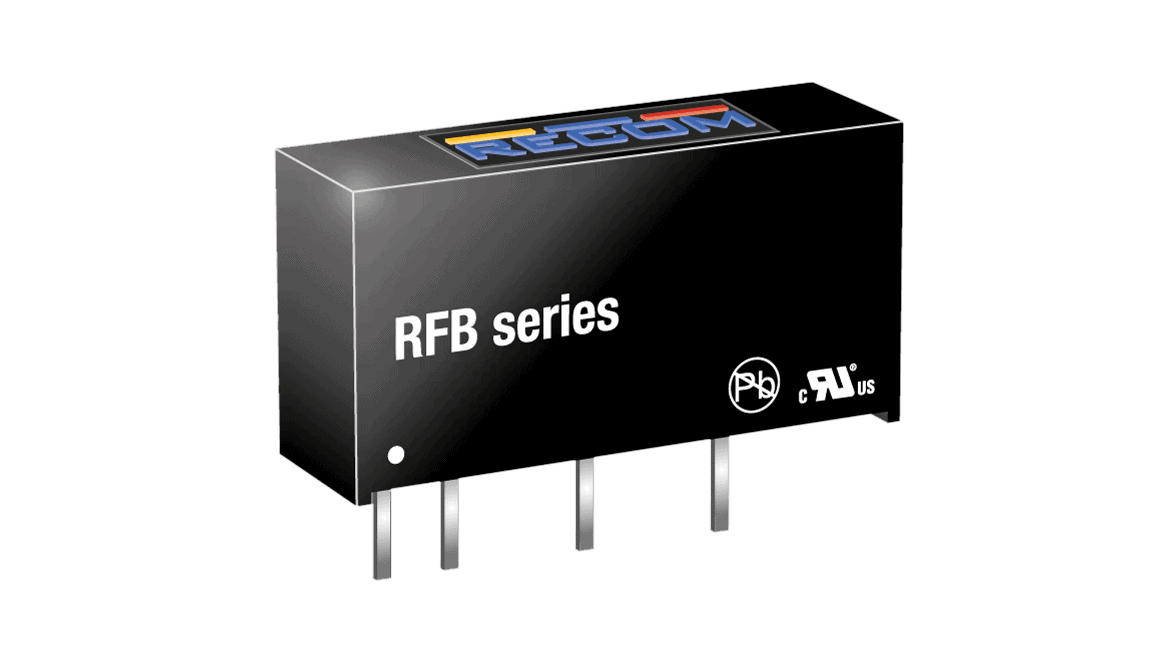

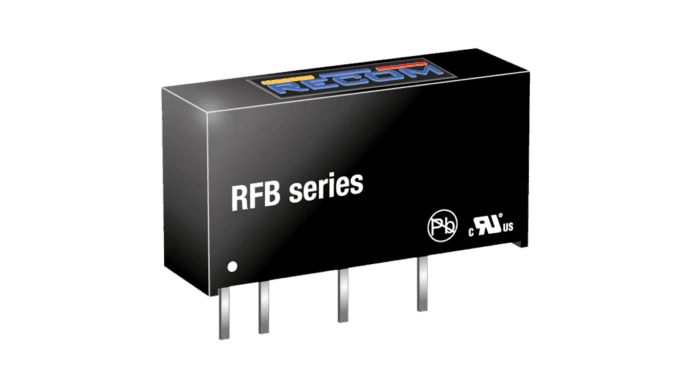

1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SIP7
CHF 1.75 excl. VAT, plus shipping costs
Item no:
RFB-0505S
Stock level:24 Available immediately
Packaging ex works:
25 piece
10+ CHF 1.75 CHF 1.65 (5%save)
25+ CHF 1.65 CHF 1.60 (8%save)
100+ CHF 1.60 CHF 1.55 (11%save)
Description
The RFB DC/DC converter is typically used in cost-sensitive general purpose applications for power isolation and voltage matching. Despite its low cost, it is a fully specified converter with 1kVDC isolation, an industrial operating temperature range of -40°C to +85°C without derating and UL/EN certification.
Technical data
- Cost-effective 1 watt converter
- 1:1 Input voltage range
- SIP7 housing
- 1kVDC insulation
- Efficiency of up to 80%
- Certified according to UL60950-1, CAN/CSA C22.2 No. 60950-1
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RFB | PDF(863.75 KB) |
|---|
Downloads
| 3D Step File RFB | Zip file (36.7 KB) |
|---|
