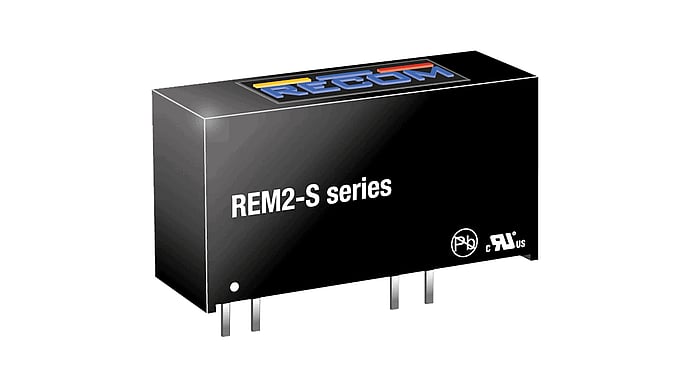

2W medical DC/DC converter, input 5V +/-10%, output 5V/400mA, SIP8

Name: REM2-0505S - Recom - 2W medical DC/DC converter, input 5V +/-10%, output 5V/400mA, SIP8
Brand: Recom
SKU: REM2-0505S
Price: 18.90 CHF
Availability: InStock

CHF 18.90 excl. VAT, plus shipping costs

Item no: REM2-0505S

In stock: Available to order

Packaging ex works: 20 piece

10+ ~~CHF 18.90~~ CHF 18.00 (4%save)

25+ ~~CHF 18.00~~ CHF 17.50 (7%save)

Recommend:

Delivery time request Print PDF

Description

The PCB mountable REM2 series complements the REM1 series with a 2Watt medical grade DC/DC converter in a compact SIP8 package. The REM2 has a reinforced 5.2kVDC/1 minute isolation and 2MOPP/250VAC operating voltage at 5000m. It offers single and dual outputs with an efficiency of up to 85%. The operating temperature range is -40°C to +80°C without derating and up to +95°C with 50% load. The converter complies with class A/B EMC and medical EMC 60601-1-2 (4th ed.) using a simple external LC filter. The REM2 is certified to CB, IEC/EN and ANSI/AAMI 60601 (3rd edition) medical safety standards and comes with a 5-year warranty.

Technical data

DC/DC converters for medical purposes
250VAC operation, 2MOPP at 5000m
5.2 kVDC/1 minute Insulation
Single or double outputs
Operating temperature from -40°C to +95°C
Medically certified (3rd ed. safety, 4th ed. E)

Additional information

DC-DC converter

Output voltage (Vdc)	5
Power (W)	2
Output current (mA)	400
Nominal input voltage (Vdc)	5
Input voltage ratio	+/-10%
I/O isolation	5200Vdc
Regulation	Unregulated
Design	SIP8
Length (mm)	23
Width (mm)	8
Height (mm)	12.2
Application	ITE/AV, Medical
Manufacturer	Recom

LEDs

Input voltage range (Vdc)	4.5...5.5
Temperature range	-40…+80°C
Efficiency typ.	79%

Data sheets

Data sheet REM2	PDF(192.09 KB)

Downloads

3D Step File REM2	Zip file (36.68 KB)
