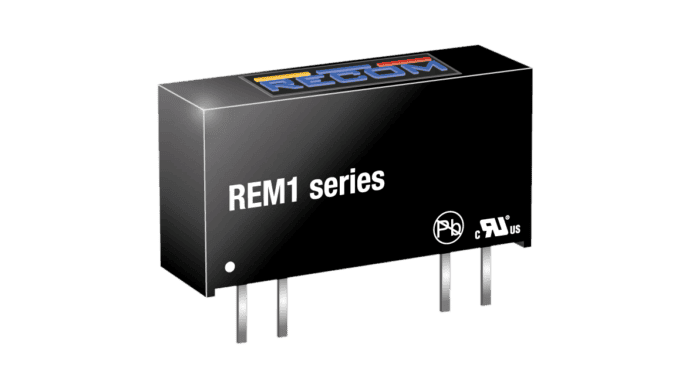

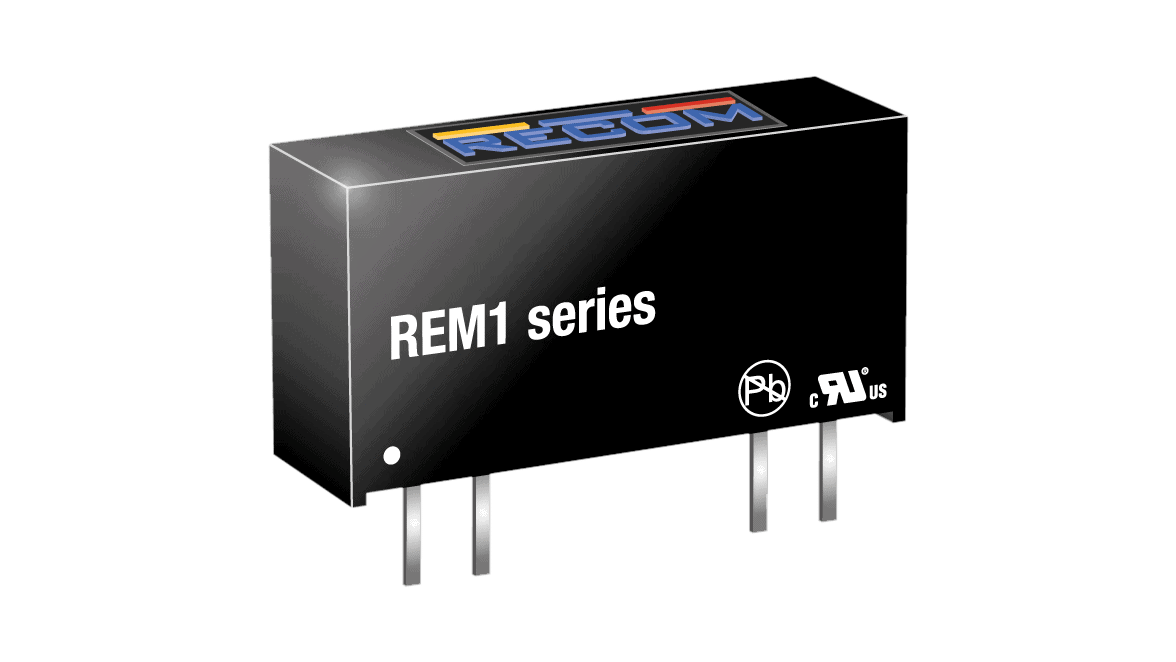

1W medical DC/DC converter, input 3.3V +/-10%, output 3.3V/303mA, SIP7

Name: REM1-3.33.3S - Recom - 1W medical DC/DC converter, input 3.3V +/-10%, output 3.3V/303mA, SIP7
Brand: Recom
SKU: REM1-3.33.3S
Price: 13.95 CHF
Availability: InStock

CHF 13.95 excl. VAT, plus shipping costs

Item no: REM1-3.33.3S

In stock: Available to order

Packaging ex works: 25 piece

10+ ~~CHF 13.95~~ CHF 13.15 (5%save)

25+ ~~CHF 13.15~~ CHF 12.25 (12%save)

Recommend:

Delivery time request Print PDF

Description

The REM1 complements the existing PCB mountable REM3, REM6 and REM10 series with an unregulated 1Watt medical grade DC/DC converter in a more compact SIP7 package. The REM1 has a reinforced 5.2kVDC/1 minute isolation and 2MOPP/250VAC operating voltage. The REM1 is available with 3.3, 5, 12, 15 or 24V inputs and offers 3.3, 5 or 12V outputs with up to 85% efficiency. The operating temperature range is -40°C to +90°C. The converter is EMC certified to Class B and 60601-1-2 (4th Ed.) for medical applications using a simple external LC filter. The converters are fully certified to CB, IEC/EN and ANSI/AAMI 60601, third edition, RoHS2+ (10/10) and REACH safety standards and come with a 5-year warranty.

Technical data

DC/DC converter for medical purposes
250VAC operating voltage, 2MOPP
5.2kVDC insulation for 250VAC working voltage
Operating temperature from -40°C to +90°C
Security according to 3rd Ed. and 4th. Ed. EMC

Additional information

DC-DC converter

Output voltage (Vdc)	3.3
Power (W)	1
Output current (mA)	303
Nominal input voltage (Vdc)	3.3
Input voltage ratio	+/-10%
I/O isolation	5200Vdc
Regulation	Unregulated
Design	SIP7
Length (mm)	19.6
Width (mm)	6
Height (mm)	10.2
Application	ITE/AV, Medical
Manufacturer	Recom

LEDs

Input voltage range (Vdc)	2.97...3.63
Temperature range	-40…+85°C
Efficiency typ.	78%

Data sheets

Data sheet REM1	PDF(715.27 KB)

Downloads

3D Step File REM1	Zip file (21.3 KB)
