1W DC/DC converter, input 4.5...5.5V, output 5V/200mA

Name: R05CTE05S-CT - Recom - 1W DC/DC converter, input 4.5...5.5V, output 5V/200mA
Brand: Recom
SKU: R05CTE05S-CT
Price: 3.25 CHF
Availability: InStock

CHF 3.25 excl. VAT, plus shipping costs

Item no: R05CTE05S-CT

Stock level:10 Available immediately

Packaging ex works: 10 piece

10+ ~~CHF 3.25~~ CHF 3.10 (4%save)

25+ ~~CHF 3.10~~ CHF 3.00 (7%save)

50+ ~~CHF 3.00~~ CHF 2.95 (9%save)

100+ ~~CHF 2.95~~ CHF 2.85 (12%save)

Recommend:

Delivery time request Print PDF

Description

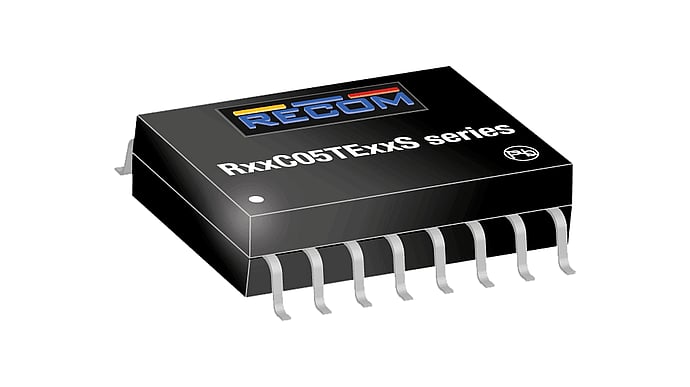

The RECOM R05CTE05S is a low cost, low profile, isolated 1W DC/DC converter in a SOIC16 SMD package with an input range of 4.5-5.5V and a semi-regulated 5V output. There is no minimum load requirement, which is ideal for applications that switch to very light load operating modes. The standard isolation is 3kVDC/1min, and the operating temperature is between -40°C and +125°C with derating. The fully automatic design, equipped with short circuit, over current and over temperature protection, ensures maximum reliability in applications such as communication, current sensing and COM port isolation.

Technical data

Compact 10.35 x 7.5 mm SMD housing
Low profile (2.5 mm)
3kVDC/1min Insulation
Low EMI emissions
Ultra-wide temperature range from -40°C to +125°C
Fully automatic, highly reliable design
Semi-regulated 5V output

Additional information

DC-DC converter

Output voltage (Vdc)	5
Power (W)	1
Output current (mA)	200
Nominal input voltage (Vdc)	5
Input voltage ratio	+/-10%
I/O isolation	3000Vdc
Regulation	Regulated
Design	SMD16
Length (mm)	10.3
Width (mm)	7.5
Height (mm)	2.5
Application	ITE/AV
Manufacturer	Recom

LEDs

Input voltage range (Vdc)	4.5...5.5
Temperature range	-40…+72°C
Efficiency typ.	54%

Data sheets

Data sheet R05CTE05S-CT	PDF(395.23 KB)

Downloads

3D Step File R05CTE05S-CT	Zip file (129.31 KB)
